Have you ever experienced this before? You’re tightening up your fresh new acoustic string and notice the bridge pin keeps creeping up, or maybe it even pops right out!

Why is this happening?

For the most part, the root of the problem stems from the bottom of the pin itself. It’s squared off and acts like a catch for the string’s ball end.

While this is certainly a main cause for bridge pins popping out, the entire problem stems from a couple of reasons – often combined.

The other issue is typically caused by the heaviest strings. Their greater thickness often binds against the bridge pin hole making it difficult for them to seat at all. In such cases, the solution is to either widen the bridge pin slot or enlarge the bridge pin hole.

Why is this still happening when it seems to be a common problem?

As with any guitar problem, it takes time for solutions to become the accepted norm. For instance, it wasn’t that long ago that pickup systems for acoustics didn’t include an integrated tuner, now it’s commonplace. Of course this is still not the absolute rule, but looking further back in guitar history, there was a time when there were no such things as electronic tuners at all – get my meaning?

For the time being, many manufacturers are still using common bridge pins that are squared off on the bottom. You’ll see them on highly recognized brand-name instruments (maybe you own one?) and even custom designed high-end replacement pins.

In this video, I run through the more common, and easier methods of getting the bridge pins to cooperate.

Video: How to Stop Bridge Pins from Popping Out

Transcript:

Hey all, Steve from GuitarNiche here. I’m just about to restring this lovely Seagull Entourage acoustic – very nice very nice, few years old, and as a cursory nice thing to do for the person that owns it, I noticed that the ends of these bridge pins, all of which are right here are all squared off – they’re just mass-produced plastic bridge pins.

What I’m going to do is well for one, take one of our new strings and and pop it in there and give you an idea what might happen.

Rightaway you’ll see that it’s pulling up on on the pin. Two things going on there. I’m going to address one at a time.

The pin itself: what I’ll do is simply chamer the edge here at the slot. Now I have to do this off camera so I don’t make a mess on the guitar. I’m just taking my file, you can do this on a grinder or you can do it with sandpaper, whatever works. But I’ll show you what I did very quickly, all I did there was just knock off that square edge it’s super simple.

I’ve heard people complaining about the bridge pins coming up when they’re tightening strings and it’s very common. Especially when you don’t know what the forces are behind it. It’s totally normal to ask questions and try to figure it out. Well, here’s your answer to help alleviate the problem of bridge pins pulling up. But, as you’re tightening up the strings it’s still not 100% guaranteed.

if you want to help things along a little bit take the end of the string here where it’s wound, and I’ve seen this happen even with chamered pins where the ball still gets hung up. Just because everything’s still at right angles.

What I’m going to do is put a little bit of a (hope that’s on camera there) I’ll put a little bit of a kink in that, just roll the ball over a little bit. Then I’ll pop that in and put the pin in, pull up a little bit. Push it down with my thumb if I have to.

By the time I get that wound up (I’m just going to do this super quick) just to give a little bit of tension and explain that because of those two small tiny little adjustments it’s done.

Okay you see it’s still coming up, but I’ll just push that down easy peasy. But the important thing is that it’s not the whole thing being drawn up.

Sometimes they’ll pop right out and then they’ll land and Never Never Land and, you know, have fun finding it.

Anyway I will do that for each string in turn but there’s your little tip for the day so to speak, actually two for one.

Hope you enjoyed that and we’ll we’ll carry on, get the job done.

Make sure you like and subscribe, read the description below this video. There’s lots of great resources there – freebies there’s a couple of free books and more stuff coming all the time. so get on that

As always play loud and have a great day.

Cheers!

The post How To Stop Bridge Pins From Popping Out (Easy Fix!) first appeared on GuitarNiche.

Ever play a guitar with action that’s sky high or buzzes too much? It’s a fact, a guitar with poor action will stifle your playing and quickly rob you of enjoyment.

How do you fix it? And what tools and methods do you use to get it where it should be?

This guide explains how to make critical adjustments for most common types of guitars and the principles behind achieving great guitar action.

Editor’s Note:

This article explains, in a wholistic way, how to adjust the action on your guitar for maximum playability and enjoyment.

In order to keep the details as concise as possible, major points of adjustment are covered in broad terms first, then explained in detail further on.

What this means for you as the reader, is that you may find yourself moving from section to section in order to gain the information that fits your current situation.

I sincerely hope this guide makes sense for you and supplies the information you need to get the most out of your guitar’s action.

Steve B.

What is Guitar Action?

Guitar action refers to how the guitar feels when you play it. A guitar with good action should have the strings set at the optimal height for your instrument, match your playing style and allow you to express yourself freely.

From a physical standpoint, the word “action” also fits the context of how you manipulate the guitar. As you play, your fret hand is literally where most of the action is.

Adjusting the action on a guitar refers to changing the distance between the strings and the fretboard. Moreover, it can be a delicate process as it requires precise measurements and careful handling of the instrument.

Setting Guitar Action: An Overview

By now you should have a good idea of the target measurements you’re aiming for, the tools you need and how to make the adjustments to get you there.

To adjust the action on a guitar, there are three main points you need to focus on:

• The nut
• Neck relief
• The bridge

By raising or lowering each element, you can find the perfect balance of playability for both the instrument and the player.

Why Action Matters

If your guitar’s action is poor, it’s not only annoying, it’s distracting. In other words you’re not getting the most out of your playing time or enjoying the experience as much as you could.

In my experience, well over 90% of guitars suffer from high action. For new guitarists this can be a deal breaker – the struggle is very real. Plus they usually don’t know what good action is supposed to feel like.

Conversely, if the action is too low, the strings may buzz against the frets when played, resulting in poor sound quality.

If your guitar doesn’t play the way you’d like, what follows is the remedy to curing your poor action woes.

The Tools You’ll Need

The tools required to adjust virtually any guitar’s action are really quite modest and certainly won’t break the bank. A few of the most common tools you’ll need include:

• An appropriate truss rod adjuster for your specific guitar
• Screwdrivers and allen keys to make bridge saddle adjustments
• A fine measuring tool to determine string height
• Feeler gauges or similar reference tools
• And ideally, a set of radius gauges

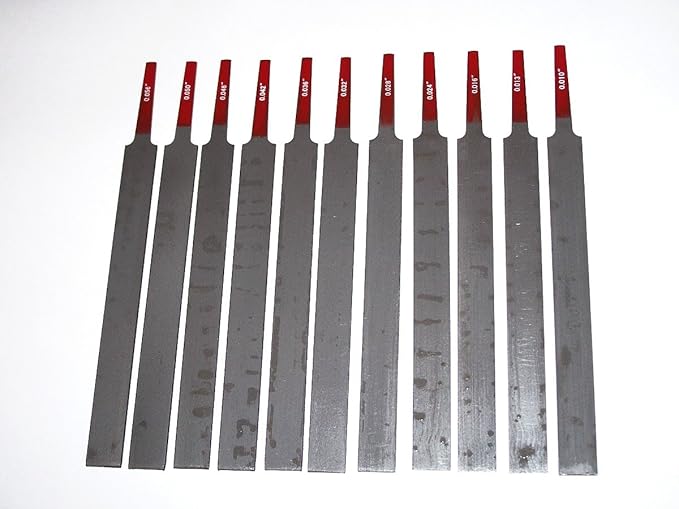

Depending on your instrument you may need additional things like files or sandpaper for trimming things like acoustic saddles.

For a complete list of the essential tools for setting guitar action and further setup adjustments, check out our Guitar Setup Tools Guide.

How to Measure Guitar Action

Start With an Assessment

Assessing the current state of your guitar’s action is your starting point. Sometimes you can easily see with the naked eye that the strings are too high or low to begin with.

Look at where the body meets the neck, do the strings seem excessively high? Or are they too close to the frets?

Now sight down the edge of the neck from just behind the nut looking towards the bridge. Do the strings seem to rise too quickly? Or are they nearly touching the tops of the frets.

Strings that are too high will seem hard to play. Strings that are too close will tend to buzz or even fret out in the upper register when you bend them.

Make some mental notes about what you observe.

As for neck relief, the neck may also look like it has a bit too much “bow”. Too much relief will make the strings in the middle of the neck feel particularly spongey or little too hard to manipulate.

The neck may also look pretty straight or even have a bit of an up-bow or a slightly rounded (humped) curvature. If this is the case, once again you’ll find the strings a little buzzy.

Commit what you’re feeling to memory. It’ll come in handy as we work through the process of adjusting the truss rod and setting the action properly.

Typical Factory Specifications

Here’s a generalized chart of factory setup specs for common brand-name guitars.

Keep in mind these measurements are not absolute and subject to many different variations such as playing style, string gauge, condition of the instrument etc.

All string heights measured in inches at the 12th fret:

Measure String Height

Measure String Height at the Nut

String height at the nut is measured by assessing the air gap at the first fret. This can be done using feeler gauges, or by eye if you have enough experience.

To use feeler gauges, pick a gauge that seems appropriate and measure the air space between the top of the fret and the underside of the string.

Keep in mind that neck relief and bridge height will influence this measurement. Therefor it is essential these factors be within a reasonable range before you commit to cutting any string slots at the nut.

The following measurements can be used a general guide for most guitars to at least get you in the ballpark. You can then tweak them to your own personal preference. Keep in mind that once a string slot is cut, it’s cut.

All string heights measured in inches from the bottom of the string to the top of the 1st fret:

If you think the nut needs attention, here’s an in-depth tutorial on how to cut nut slots to the ideal depth every time:

Share your appreciation for guitars with a great shirt! >>

Aged Classic Les Paul Burst Guitar Shirt

Can’t afford the real thing? Wear it on a great quality guitar shirt for a fraction of the price!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Eleven: It’s One Louder T-Shirt

This shirt goes to eleven…

Love the eleven, it’s one louder.

Order Your Eleven Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Vintage Aged T-Style Electric Guitar T-Shirt

This superbly comfortable shirt sporting a beautiful Vintage Aged early 50’s butterscotch electric guitar graphic will last year after year, wash after wash.

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Original 1959 Les Paul Guitar T-Shirt

If you love beautiful guitars you can appreciate the massive appeal of this gorgeous iconic instrument in print as an Original Vintage 1959 Gibson Les Paul Tee. If you can’t afford the real deal… wear it on a shirt!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Measure String Height at the 12th Fret

Using your preferred fine measuring tool, here’s how to measure your string height:

1. Hold the guitar in the playing position.
2. Starting with the low E string, measure the distance from the bottom of the string to the top of the 12th fret. (Coins work really well as a quick reference).
3. Record the measurement.
4. Next, move to the high E string and repeat the same measurement technique.
5. Record the measurement.

Note: The 12th fret this is a common reference point as it’s the middle of the string between the nut and the bridge.

If you want more precision, use the 8th and 14th frets. This technique will also allow you to account for effects of relief.

Don’t worry about measuring all the strings in between, setting the outer strings will give us a guideline for the remaining strings.

Lastly, move to the end of the neck at the first fret. Does it take a bit too much pressure to push the strings down? Or do they buzz when you play them open?

In either case, it means we’ll have to make one or more adjustments to get the strings to ring out properly and feel right at the same time.

Measure Fretboard Radius

Radius gauges are an indispensable tool for coaxing the maximum playing potential out of a guitar. By matching the radius of the fretboard with the radius of the strings at the bridge, it’s possible to achieve superior guitar playability.

Chances are your fretboard radius is fairly common if your guitar is manufactured by a popular brand. Here’s a table listing some of the most typical radii used by larger manufacturers:

Common Fretboard Radius Measurements

Of course, if you’re unsure or have a more unique model, it’s a pretty quick process to find the factory specs for your particular instrument’s fretboard radius through the manufacturer’s website. Or you can refer to this excellent list of radius measurements organized by manufacturer here.

In practice, ALWAYS measure the fretboard radius of service instruments to verify you have correct information.

Radius gauges come in a variety of styles and price points. In general, they all do the same job and won’t break the bank.

Types of Guitar Radius Gauges

How to Measure Fretboard Radius

To measure neck’s fretboard radius, follow these steps:

1. Pick a notched radius gauge you think is the right one.
2. Make sure it matches the wider spans of fretboard close to or at the body joint (14th – 18th frets) without any gaps.
3. If it doesn’t match, move to the next size up or down and repeat step 2.

To measure string radius at the bridge, follow these steps:

1. Pick a solid curve radius gauge that matches the fretboard.
2. At roughly 1/2″ ahead of the saddle(s), rest the gauge against the strings with as little pressure as possible.
3. Check that all strings contact the gauge by gently picking each string in turn. Each string should buzz slightly if it is contacting the radius gauge.

If any strings do not touch the gauge you’ll have to adjust the saddle(s) to match. Because different instruments require different approaches to making these adjustments, I’ll cover them individually in the section on How to Adjust the Action on Different Types of Guitars.

Measure Neck Relief

There are a number of ways to measure or “read” neck relief. My preferred method involves measuring the gap under the 3rd string around the 7th to 9th frets.

If there isn’t a gap it means the neck is too straight or may have a back bow. We’ll address this later in the article in the section: “How to Adjust the Truss Rod“.

How to quickly and accurately measure neck relief:

1. While holding the guitar in a playing position, press the G string down at the 2nd fret with your fret hand, and at the same time, the 14th or 15th fret with your pick hand.
2. Now look at the G string at the mid-point of this span – around the 7th to 9th frets.
3. Look for a gap of light between the top of the frets and the underside of the string itself. The gap should be somewhere between .006″ and .018″ or .15 mm and .46 mm respectively depending on the instrument.

For quick reference, the gap should look about the same thickness as the diameter of the 1st or 2nd plain strings.

If the gap is more than described, or not there at all, we’ll have to adjust the truss rod.

These initial measurements will give you an excellent idea of where your guitar’s action currently sits. Depending on how you want the guitar to feel as you play, you can increase or decrease these readings to match your style.

Now that you have your reference points, you can begin the most important process of setting your guitar’s action: balancing string height with truss rod relief.

Know Your Truss Rod

Neck relief should be set so that it’s not too straight – which can cause excessive buzzing, or have too much air under the strings – which causes the neck to feel spongey and harder to play.

Depending on the manufacturer, there are basically four different types of truss rod adjusters:

How to Adjust the Truss Rod

Regardless of the type of truss rod adjuster or which end of the neck it’s located at, they all work the same way:

• Tightening the adjuster increases pressure which straightens the neck. This brings the frets and the strings closer together.

• Loosening the adjuster decreases pressure which adds relief. This adds air between the frets and the strings.

To set the relief that’s perfect for your how you like your action, make small incremental bridge height and truss rod adjustments until you’re satisfied with the results.

Make Preliminary Adjustments

Now that we’re armed with the basic knowledge of how to measure action, it’s time to make preliminary adjustments. This step gets us in the ballpark and helps us better determine what the final adjustments should be. It also helps us control problems that can pop up if we commit to a setting prematurely.

For example, if we cut the nut slots to an optimal depth then straighten the neck, the nut slots will be too low causing the strings to buzz. The only remedy then is to repair or replace the nut.

To use an analogy, let’s write a rough draft before we commit to the final copy.

Additionally, try to make preliminary adjustments using the old strings if at all possible – especially if the guitar hasn’t been adjusted for a while.

Why? Because new strings will quickly get trashed from repetitive tensioning during the adjustment process. Save the fresh strings for the last few steps to maintain their full integrity.

To begin setting the guitar’s action, follow this series of preliminary adjustments:

1. If possible, lower or raise the bridge or saddle(s) to get them in the ballpark. It’s ok to be conservative, we want to “creep” the individual adjustments gradually towards the ultimate goal.
2. Read the neck relief and make a quick adjustment if necessary.
3. Make sure the nut is cut properly. If it seems ok, leave it alone. If it has issues and needs to be re-cut, check out the quick tutorial on re-cutting a nut here. If it needs to be repaired, check out this article on nut repair.

Next, we’ll look at the fine adjustments we need to coax the most playability out of your guitar.

Action and Different Types of Guitars

Different types of guitars, electric and acoustic for example, have different types of action adjustments. Nonetheless, they all follow the same basic principle of getting the string height and neck relief to work together.

I must stress that, as we go from instrument to instrument, we’re going to assume the nut is in good shape.

Why? Because regardless of the type of guitar, the nut is a fixed point and shouldn’t need further adjustment once it’s set. For help on setting the nut height, refer to the links in the Preliminary Adjustments section.

Otherwise, the truss rod and bridge are the areas that really need the attention – the vast majority of your work will involve setting the bridge or saddle height and adjusting neck relief.

Author’s Note: Getting the greatest possible action out of a guitar relies heavily on all critical adjustment points being within acceptable limits. If you’re in doubt or think these adjustments are beyond your comfort level, take your guitar to a qualified tech.

Steve B.

Acoustic Guitars

Whether you like your action a little higher or as low as possible, great action on an acoustic guitar, like any other guitar, involves finding the perfect balance between the nut height, neck relief and saddle height.

Most acoustic guitars come with a one-piece saddle made of natural or man-made materials. The most common being bone, plastic or graphite.

As mentioned previously, you should have the neck relief at least in the ballpark to minimize re-adjustments.

In my experience, acoustic action is usually set too high – either from the factory or due to the stresses of aging. Achieving comfortable low action on an acoustic involves trimming an appropriate amount of material from the bottom of the saddle – not the top, to bring the string height down.

During the trimming process, it’s not uncommon to have to reinstall the saddle and strings a couple of times to check the action. This is where keeping the old strings on really comes in handy

How to Adjust the Action on an Acoustic Guitar

To adjust the action on your acoustic follow these steps:

1. Measure neck relief and adjust to within your own acceptable limits.
2. Make sure individual nut slot heights are set properly. Adjust if necessary.
3. Remove the strings.
4. Carefully remove the saddle.
5. Check that the saddle slot is clean and make sure there are no pre-existing shims.
   • If the strings are already too low and you do need to install a shim, use a piece of stiff material with a thickness of roughly .025″ (0.635 mm) cut to the appropriate length and width. An old credit card works perfectly for this.
   • Once you’ve installed the shim, skip to step 8.
   • If you are removing saddle material, continue to step 6.
6. Mark a straight line along the bottom edge of the saddle, roughly .025″ from the bottom is a good start. Note: a little goes a long way. In other words, removing a small amount of material can make a big difference in how the action feels. Plus it’s better to creep towards your target rather than overshooting it.
7. Remove the excess material from the bottom using a sander, file or sandpaper. Aim to “split the line” and at the same time, make sure the bottom of the saddle is perfectly flat.
8. Reinstall the saddle and strings.
9. Tune to pitch.
10. Check neck relief again. Adjust if necessary.
11. Check for playability. Pick a few single notes and strum a few chords up and down the neck in multiple places. The action should feel comfortable and the notes should ring true without the strings buzzing.
12. If necessary, repeat steps 3 through 11.
13. Install new strings and tune to pitch.
14. Check neck relief and playability. Adjust if necessary.
15. Fully stretch the new strings and re-tune to pitch.
16. Play and enjoy!

You’ll notice there’s a lot of reference to checking neck relief. Why? As you remove and reinstall the strings you’re also removing and reapplying pressure. This can cause neck relief to change as compression is redistributed.

You’ll also notice new strings have slightly less tension and are more elastic. This will cause the neck to relax a little. Therefor keeping a constant close eye on neck relief is an important part of the process.

Note: Sometimes the an acoustic’s saddle radius doesn’t match the fretboard radius. whether you decide to adjust it or not requires careful consideration.

On some guitars this mismatch is intentional, the saddle radius will read flatter compared to the fretboard. A common trait with Martin guitars, this is due to either the use of a compound radius (a gradual flattening of the radius along the neck) or extra height added to the bass side to allow room for thicker string vibration.

Conversely, you may find the saddle has an overly rounded radius. This is usually due to overly-standardized production that has neglected the finer points, preferring quantity over quality.

Lastly, all the steps regarding action described above are exactly the same for a twelve string acoustic – the only difference is in the number of strings you get to deal with!

Electric Guitars

For the most part, adjusting the action on an electric guitar follows the same procedures as previously mentioned – but with one significant exception: electric guitars are inherently designed to be more adjustable in order to fine tune string height, radius and intonation length.

Though the goal of adjusting the action at the bridge is the same, the type of bridge your electric guitar has will greatly affect the types of tools and processes you use.

For example, adjusting the bridge on a typical Fender-made product will be very different from adjusting the bridge on a Gibson Les Paul.

Additionally, make sure you keep a close eye on string tension. Making these adjustments will definitely affect string pressure and potentially cause misreads. To maintain accuracy, good practice is to continually check the condition of your strings and keep them as close as possible to normal tension.

That said, let’s have a look at how to adjust the action on some of the most common types of electric guitars:

Fender Style Electric Guitars

Guitar Tech Tips, Tricks, Hacks and Facts eBook

Unlock the Secrets of Professional Guitar Service

Tired of buzzing strings, poor intonation, or paying for every little repair?
Now you can take control of your guitar’s health with the most complete collection of guitar service insights ever created.

Drawn from decades of professional bench work on thousands of guitars, this eBook packs over 250 tips, tricks, and hacks into one easy-to-follow resource.

not rated $39.95 USD Add to cart

Keep Calm Rock T-shirt

Frustrated with your guitar? Want to pull a Townsend on it? Instead of taking it out on your guitar, wear it on a shirt! It’s better for you, and a heck of a lot cheaper.

Be good to your instrument and stay cool with this Keep Calm Rock T-shirt.

Order Yours Today!

---

not rated $25.97 – $27.97Price range: $25.97 through $27.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Keep Calm And Solo On Short-Sleeve Unisex T-Shirt

NOT SOLD IN STORES!

Enjoy this incredibly comfortable Keep Calm And Solo On Uinsex T-shirt with a guitar player’s twist of support and hope. Rock On, Play On, Keep Calm. and always remember those on the front line!

Makes a perfect gift for any guitar lover!

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

How to the Adjust Action on a Stratocaster

Stratocaster guitar bridges come in two basic forms according to the type of bridge mounting screws: the classic six-point and the modern two-point systems.

Overall bridge height can be adjusted by means of the bridge mounting screws:

Though each type of tailpiece is originally designed to be floating, it can also be “hard-tailed” or set flat to the body.

If the bridge is set to be hard-tailed, the process of setting your action is fairly straight forward.

If the tailpiece (ie: the bridge) is set to be floating, adjusting the amount of rise off the body surface will affect the overall height of the strings.

Therefor, when adjusting the claw-plate springs in the back, be sure to re-check your string height – more spring tension brings the strings closer to the fretboard and vice versa.

Stratocaster bridge systems feature individual saddles that are fully adjustable in three aspects: height, radius and intonation length.

Each saddle has two forward-mounted grub screws that can be used to set the string height, and at the same time, match the radius. The screw at the rear of the bridge plate is used to set intonation length.

Typical US (Imperial spec.) models use a 1/16″ allen key for the grub screws, whereas import and many MIM units use a 1.5 mm allen key driver.

Steps to Adjust a Stratocaster Bridge:

First and foremost, we’re going to assume you have a fresh set of strings on, the nut and neck relief have been adjusted, and you are ready to go!

1. Adjust the bridge mounting screws:
   • Relax string pressure until the back of the bridge plate contacts the body surface.
   • If necessary, adjust all bridge mounting screws to make sure the bridge plate is reasonably flush with the body.
   • Starting with the outermost screws, adjust the bridge mounting screws until the back of the bridge plate just begins to rise off the body surface.
   • Back off each bridge mounting screw equally an additional 1/4 to 1/2 turn.
2. Tune the strings up to pitch.
   • If floating, adjust the claw plate spring pressure until the back edge of the bridge measures 1/8″ or 3.18 mm off the body surface at pitch. Note: This height can be adjusted to better match your playing preference.
   • If hard-tailing, continue to step 5.
3. Check neck relief. Adjust if necessary.
4. Adjust the 1st string saddle height to its lowest acceptable limit. Note: individual string heights are set by adjusting the two grub screws at the front of each saddle
5. Adjust the 6th string saddle height to its lowest acceptable limit.
6. Using the appropriate radius gauge, set the remaining string heights to match.
7. Stretch the strings out fully and retune to pitch.
8. Double check for ease of action and playability.
9. Enjoy!

Author’s note: When setting up a Strat to be floating, the bottoms of the saddle plates should ideally be level and in line with the trajectory of the strings when at rest.

How to Adjust the Action on a Telecaster

The beauty of a Telecaster lies in its simplicity. Originally designed to be a working musician’s guitar, the focus was on the balance of utility and performance.

For the most part, achieving great action on a Telecaster is the same as previously mentioned instruments. But once again, the main difference lies in how you deal with the bridge components – namely the saddles.

Adjusting a Telecaster bridge with modern individual saddles is essentially the same process as on a Stratocaster – but without the need to adjust any bridge mounting screws.

Here’s a quick video about setting action on a Vintage 52 Reissue Telecaster:

Aged Classic Les Paul Burst Guitar Shirt

Can’t afford the real thing? Wear it on a great quality guitar shirt for a fraction of the price!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Eleven: It’s One Louder T-Shirt

This shirt goes to eleven…

Love the eleven, it’s one louder.

Order Your Eleven Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Vintage Aged T-Style Electric Guitar T-Shirt

This superbly comfortable shirt sporting a beautiful Vintage Aged early 50’s butterscotch electric guitar graphic will last year after year, wash after wash.

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Adjusting a vintage style Telecaster bridge with three barrels is slightly different in a couple of aspects. For one, you may need a fine slot screwdriver to adjust the grub screws.

Secondly, it’s important to understand that adjusting one side of the barrel influences the other side slightly. Therefor it’s important to constantly re-check the overall height and radius measurements you’re aiming for.

Steps to Adjust a Telecaster Bridge:

Let’s assume (again) you have a brand new set of strings on, the nut and neck relief have been checked and adjusted to your satisfaction, and you’re ready to go!

1. Tune the strings up to pitch.
2. Check neck relief. Adjust if necessary.
3. Adjust the 1st string saddle height to its lowest acceptable limit.
   • Note: Whether the saddles are individual to the string or the two-string barrel type, string height is set by adjusting the two grub screws at the front of each saddle.
4. Adjust the 6th string saddle height to its lowest acceptable limit.
5. Using the appropriate radius gauge, set the remaining string heights to match.
6. Stretch the strings out fully and retune to pitch.
7. Double check for ease of action and playability.
8. Enjoy!

Gibson Style Electric Guitars

Adjusting the action on Gibson style electric guitars once again follows the same basic process as any other: we want to start by making sure the nut height and neck relief are set according to your preferences using the methods described above.

Next, assuming you have a new set of string on to work with and the appropriate tools, let’s have a look at how to make action adjustments at the bridge.

Gibson tune-o-matic type bridge adjustment points:

Steps to Adjust a Gibson Style Bridge:

1. Make sure the strings are tuned to pitch.
2. Double check neck relief. Adjust if necessary.
3. Using the appropriate tool, adjust the treble side of the bridge to its lowest acceptable limit.
4. Check string tension making sure it’s at least close to being in tune.
5. Adjust the bass side of the bridge to its lowest acceptable limit.
6. Once again check string tension.
7. Double check string height and readjust the bridge if necessary.
8. Stretch the strings out fully and retune to pitch.
9. Double check the action throughout the neck is to your liking.
10. Play away!

You may have noticed I haven’t mentioned anything about using a radius gauge. This is for good reason.

The interesting thing about Gibson tune-o-matic type ABR and Nashville bridge design is in the fact that the bridge unit itself acts as a unified carriage – the individual saddles are not height adjustable themselves.

Because Gibson type saddles are not height adjustable, setting the radius may require cutting the saddle slots. This process is not to be taken lightly as there are significant consequences.

Why? Well for one, older bridges, particularly those found on older and vintage instruments, suffer from what’s called a “collapsed bridge” or “bridge sag”. This is a condition where the bridge loses its original radius over time due to continuous pressure from the strings.

And two, if you cut one saddle slot too low, you have to adjust the others to match. In other words, you must be precise in your measurements and careful in execution – once it’s cut, you can’t undo it.

In this respect, Fender type bridge design has a significant advantage in the ability to fine tune without alteration.

Either way, recutting the saddle slots is a destructive process requiring careful consideration, especially when dealing with an older bridge that’s already compromised.

Tools Required:

If you do decide to refine the radius by cutting the saddle slot depths, you can use the same tools for cutting nut slots.

Additionally, you should cut the saddle slots BEFORE you set string height. If you try to do it afterwards, you’ll have to re-set the bridge height all over again.

Should I Top Wrap or Not?

What does top wrapping a stop tailpiece have to do with action? Well, the answer lies in why it’s adjustable in the first place.

According to original Gibson advertising literature, there was an intentional benefit baked into the design to begin with: the, “Tailpiece can be moved up or down to adjust tension”.

To this day, there is a highly polarized debate as to whether the strings should be oriented one way or the other. One side claims, “If it’s good enough for (insert guitar hero name here), it’s good enough for me.” versus “If it was designed that way, then that’s the way it should be done.”.

It really comes down to a matter of preference. If you do happen to favor one or the other, which side are you on? By all means, feel free to leave a comment in the comments section below.

Guitars with Locking Systems

As a group, guitars with locking systems are purpose-built for fast action. When build quality and material components are good, these guitars perform like thoroughbreds being nearly effortless to play.

Due to the nature of the locking system, these guitars also fall into a category all their own. Along with other features, the locking system also affects the process of setting the guitar’s action.

Many players find the process of working on a locking system incredibly frustrating. For good reason: you’re dealing with a host of mechanical points that have to be locked or unlocked while at the same time work with loaded springs under tension.

In reality, the process of adjusting the action on a guitar with a locking system is really not that complicated. You just need the appropriate tools, and follow a logical method to get the guitar’s action where you want it to be.

The Most Common Issue – The Bridge is Too High or Low

One of the most common pain points associated with locking systems is the change in bridge height when you switch string gauges. The bridge will get “decked” – that is, pulled back into the body with lighter strings, or rise sky high when going to a heavier gauge.

To correct a locking bridge height that is too high or low, refer to steps 4 thru 7 below.

Common Locking Bridge Adjustment Points

Adjusting the bridge to level is done by adjusting the claw plate screws located in the spring cavity.

When the spring pressure is equalized with the string pressure, the bridge plate should be relatively flush with the plane of the body.

Similar to Gibson style and modern Fender Strats, locking system bridges use a two-point adjustment system to raise or lower the entire bridge unit.

Locking Nut Shims

Shims of different thicknesses can be used to adjust the height of the locking nut.

Locking Bridge Saddle Shims

Steps to Adjust the Action on a Guitar with a Locking System:

For the sake of popularity, we’re going to use a standard Floyd Rose type locking system for reference.

1. Make sure the bridge is in as level a position as possible. See step 4 below for instructions on how to do this.
2. With the strings at tension, carefully asses neck relief is within tolerance. Adjust if necessary.
3. Check string height at the nut.
   • How to adjust a locking nut if it needs to be raised or lowered:
     • Remove the pressure pad bolts, pads and any nut mounting screws. Note: string tension will keep the nut in place.
     • Place a suitable block such as a tongue depressor under the back of the locking bridge. This will stop it from collapsing into the body.
     • Starting with the first string tuner, carefully back off each string 2 or 3 turns to reduce overall string tension.
     • To further reduce spring load on the guitar, carefully remove 1 spring from the cavity in the back of the body.
       Spring load should now be reduced enough so that you can either add or remove shims from underneath the locking nut.
     • Insert one of the 3mm locking pad machine screws 2 or 3 turns into the center position on top of the nut. Using the screw as a handle, you should now be able to gently pull the nut up vertically to add or remove shim material underneath. If the nut seems to still have too much pressure on it, back off the tuners a bit more and / or remove another spring if necessary.
     • Add or remove shims underneath as required. Note: If, after removing all shims, the locking nut needs to go still lower, the nut seat will have to be re-milled. If this is the case, take it to a pro as this is a highly specialized process and beyond the scope of this guide.
     • Using a stepped approach, carefully bring the strings back up to tension and reinstall any tremolo springs previously removed.
   • Recheck that the nut is at an acceptable height. If necessary, readjust using the method previously described.
   • Recheck that the neck relief and bridge are also within acceptable limits. Readjust if necessary.
   • Reinstall the nut mounting screws. Note: It is not necessary to reinstall the pressure pads just yet.
4. With the strings at tension, check that the bridge plate is level with the plane of the body. Alternatively, the bridge plate can be lined up with the trajectory of the strings.
   • How to level the bridge:
     • If the back end of the bridge plate is too high, tighten both claw-plate screws equally 1/2 to 1 full turn each.
     • If the back end of the bridge plate is too low, loosen both claw-plate screws equally 1/2 to 1 full turn each.
     • Retune the strings to pitch.
     • Check that the bridge plate is level. If not, repeat the above steps according to the condition of the bridge until it is level.
   • Double check the strings are at pitch.
5. Adjust the treble side fulcrum stud up or down until the 1st string height is set to its lowest acceptable limit.
6. Adjust the bass side fulcrum stud up or down until the 6th string height is set to its lowest acceptable limit.
7. Recheck that the bridge is level and that the nut height and neck relief are still within acceptable limits. Make refining adjustments if necessary.
8. Using the appropriate radius gauge, check that the radius of the strings indeed matches the radius of the fretboard.
   Important Note: Whether the saddle radius matches the fretboard radius or not is highly dependant on the quality of manufacture. In my experience, locking system saddles rarely match the fretboard radius and require shims to get a perfect match.
   • How to adjust string radius on a locking system bridge:
     • Remove tension from the string you want to adjust.
     • Record the intonation point for future reference.
     • Loosen and remove the saddle lock down screw attached to the saddle you’re adjusting.
     • Carefully lift up the saddle to expose a gap under the front portion. Pulling the string up vertically usually works well for this.
     • Insert the appropriate size shim under the saddle. This can be anything between .005″ to .015″ or .127 mm to .381 mm depending on the amount of radius gap you need to compensate for.
     • Realign the saddle to its original intonation point.
     • Reinstall and tighten the saddle lock down screw.
     • Tune the string up to pitch.
     • Check that the string height now matches the radius. Readjust if necessary.
   • Check that all strings are at pitch.
9. Recheck that the nut height, neck relief and condition of the bridge are set to your liking.
10. Line up and level the fine tuner adjustment screws making sure there’s enough room for adjustment after lock down.
11. Double check that the saddle lock down screws are secure.
12. Reinstall the nut pressure pads and pad bolts, and lock them down.
13. Recheck that the guitar is tuned to pitch. Fine tune if necessary.
14. Play!

For most systems, the above method works very well. But variations between manufacturers will require adapting some principles to make things work for the particular unit.

Floyd Rose vs Kahler Systems

For example, adjusting the locking nut for a Kahler system works exactly the same as described above, but adjusting the bridge is a very different animal – more like that of a Strat but on steroids. Plus there’s no true locking mechanism for the strings.

Archtops, Jazz Guitars and Semi-Acoustics

Adjusting Action on Archtop, Jazz and Semi-Acoustic Guitars

Guitar: Helping Musicians Since 1952 Classic Rock T-shirt

This is a great classic themed rock guitar t-shirt that comes in a multitude of colors. The vintage styling says it all. Inspired by retro cool vibe of the year 1952 when a true rock legend instrument was born.

Makes a great gift for any guitar player who appreciates vintage vibe.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Jimmy Page Guitar Player Rock T-shirt

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Sale!

Guitar Psychology T-Shirt

Ever wonder what causes GAS? This is it in a nut shell, this is the totally rational reasoning that justifies every single guitar purchase you make.

GOOD NEWS! This t-shirt is far less expensive than the guitar you’re currently pondering. Plus it will make you look cool too – so buy two ;)

Order A Pair Today!

---

not rated $25.97 Original price was: $25.97.$18.99Current price is: $18.99. USD Select options This product has multiple variants. The options may be chosen on the product page

Setting the action on archtop, jazz and semi-acoustic instruments is very similar to that of acoustic guitars – with some interesting exceptions.

Many traditional archtop jazz guitars come fitted with a pre-intonated, height adjustable bridge system. The saddle component is a typically a single piece of hardwood or metal set atop of a base plate fitted with adjustable thumbwheels.

With these instruments, adjusting string height for better action is a simple matter of raising or lowering the saddle using the thumbwheels.

Interestingly enough, even a straight metal bar, as used in Gretsch’s 7576 Country Club, can be remarkably effective and musical when adjusting the action on a jazz-box.

View this post on Instagram

A post shared by GuitarNiche (@guitarniche)

Putting a wedge in the door of the future, more “modernized” instruments make use of tune-o-matic type bridges and are thus, fairly straight forward.

Setting the action on these guitars is essentially the same as with Gibson type instruments.

Classical Guitars

Adjusting Action on a Classical Guitar

For the most part, adjusting the action on a classical guitar follows the same process as steel string acoustics, but with a few very important differences:

• Classical guitars traditionally have a flat fretboard, therefor there’s no need for measuring or adjusting a radius.
• Due to lower string pressure, many classical guitars are not equipped with a truss rod – no adjustment is necessary.
• Action on a classical guitar will be a little higher due to the higher elasticity and tendency of the strings to vibrate more aggressively. This means both the nut and the saddle must be set fractionally higher.
• If you have to remove the saddle to make adjustments more than once, it’s not very practical to un-weave the strings at the bridge. Instead, loosen the string tension and carefully insert a suitably sized wedge just ahead of the saddle. This should allow you enough lea-way to remove the saddle, make an adjustment and reinstall it.

Basses

Adjusting the Action on a Bass Guitar

Adjusting the action on a bass guitar typically follows the same process as electric guitars. Most of the “action” is set using the bridge components.

View this post on Instagram

A post shared by GuitarNiche (@guitarniche)

Depending on the architecture, the adjustment points and methods are essentially the same, just on a larger scale (no pun intended). For example, larger strings means a little more string height is needed along with a touch more neck relief.

From a player’s point of view, one major consideration is in whether you use a pick, fingers or combination of both. These various techniques have a substantial influence on how the action is set which is heavily dictated by the player’s style.

Should Action Be High or Low?

Whether you like your guitar’s action high or low depends on a number of factors:

• The type of instrument you play
• Your technique or approach to playing
• Your tolerance for string buzz
• Your general taste in music
• Your level of experience – or even age

Considering the range of musical styles and instruments, these factors suggest an incredibly wide range of variations in how action should be set.

How to Set the Lowest Action on a Guitar

Before setting the lowest action your guitar will allow, make sure you have covered the preliminary adjustments and general action adjustments for your specific type of guitar listed above.

Next, you’re going to check the neck in multiple areas. Checking these multiple points magnifies your sense of how the guitar sits. It also lets you determine the limits of your guitar’s action and helps balance it with your playing style.

Here are the specific steps to measure for the lowest action your guitar will allow:

1. Hold the guitar in the playing position.
2. While looking at the Low E string around the 12th to 15th fret area, make a mental note of or take physical distance between the tops of the frets and the underside of the string.
3. On the same low E string, play a few notes up and down the neck in between the 10th and 17th frets. if there’s too much resistance, the strings are too high. If the string buzzes, the string height is already set too low, or one or more frets need attention (which is common where the neck meets the body).
4. Again on the same low E string, move to the third fret area and play a few notes up and down the neck to make sure it doesn’t buzz or feel too spongey. If it does, most likely the neck still needs a truss rod adjustment (or less likely, you may need some fret work).
5. Now move to the high E string. Again, make a mental note of (or measure) the string height above the frets around the 12th to 15th fret area.
6. In that same area, play a few single notes up and down the neck. There should be no buzzing and very little resistance under your fingers. Each note should ring true and clear.
7. Now do at least a full tone bend (more is better) on every fret from the 10th to 17th frets. If you find the string buzzing or fretting out, the action is already set too low or one or more frets need attention.
8. Lastly, using a similar method as the described for the low E, move to the 3rd to 5th fret area on the high E string. Play a few notes in that section and check for any buzzes, sizzles or excess “air” under the string. If there are issues, once again it suggests the truss rod needs adjustment, or a fret or two may need attention.

The best and lowest action you can achieve will be a direct result of following this process. Moreover, this same process can also be used for the vast majority of guitars.

Acoustic Versus Electric Guitar Relief Measurements

Measuring nominal action on an Ovation acoustic and super low action on a Telecaster

You’ll notice nothing is mentioned about the inner strings: 2nd, 3rd, 4th and 5th. This is because we’re using the outer strings to determine our lower limits. The remaining strings will fall in line as we make fine adjustments later on.

There are a few other subtle hot spots that will manifest depending on the strings and instrument, but the fret areas mentioned above are those that tend to be extremely consistent.

The reality is, whether you prefer your action high or low or are still trying to figure it out, the best guitar action sticks to a straight forward principle: it should feel right.

The Pros and Cons of High Action vs Low Action

Contrary to most opinions, high action is not necessarily bad. Higher action will allow an instrument to “speak” a little better; it produces more volume, but you have to work for it.

One of my local clients, Ian Crichton of the prog rock group Saga, likes his action a little higher. He wants to hear the notes ring loud and true with a good amount of “ping”. His comment about high action was, “You get used to it.”.

Conversely, a guitar with low action requires less energy to manipulate the strings.

For instance, many metal players prefer their action very low in order to accommodate lightning fast shredding techniques such as sweeps, arpeggios, pivots etc.

Compared to higher action, the trade-off is that the lower you go, the more you sacrifice the instrument’s acoustic value. Notes will become stifled and choked because the strings simply don’t have enough room to vibrate and reach their full potential.

For most of us, the sweet spot is somewhere in the middle.

Do New Guitars Have Good Action?

Depending on build quality, new guitars may or may not have good action out of the box.

The fact is the vast majority of production instruments are set to factory specs. Though they tend to be within playable limits, they often need to be further refined to fit the player better.

Well known brands such as Martin, Taylor, Gibson, Fender and a host of others set very high standards for their instruments. This minimizes the chances of you getting a new guitar with poor action and playability.

On the other hand, there are an endless number of off-brand instruments that cover every conceivable level of quality.

At one end of the spectrum you’ll find new guitars that are literally unplayable, all the way over to those that play very well with great action, and everything in between.

Generally speaking, the better the grade of the guitar, the better your chances of it playing reasonably well directly from the manufacturer – or at least with minimal adjustments.

Why Does Action Change?

Over long periods, wood moves in ways you can’t see. The effects of time, pressure and humidity change the very nature of the guitar, this is why guitar action changes.

The effects of weather can have a very negative affect on instruments, particularly in extreme environments. Wood, the most common guitar material, expands and contracts with relative humidity which in turn causes structural issues such as cracking and joint separations.

Changing string gauges also changes the amount of compression or pressure on the guitar – which directly affects how the guitar plays.

For instance, going to heavier strings will pull the neck up which raises the strings creating a higher action. The reverse can be true if you change to a lighter gauge as well: the neck relaxes and the strings start to buzz requiring an action adjustment.

What’s the Difference Between Guitar Action and Guitar Setup?

Guitar action is the term used to describe how well a guitar plays, how easy it is to manipulate.

A guitar setup is more of a wholistic approach to the entire instrument. In other words, a setup covers all operational elements of the guitar from the tuners to electronics and everything in between.

For more information on all the elements that go into setting up a guitar, check out this guide.

How Much Does it Cost to Lower the Action on a Guitar?

The price to lower the action on a guitar – no matter what kind of instrument, will depend on how much effort has to go into making it right for the player.

Some guitars, especially better high-end brand name instruments, are fairly easy to get to play with nice low action because they’re just built better with better materials.

Consequently, lowering the action on a cheap guitar will likely cost more because of the extra work involved to get it to be more playable.

That said, a decent guitar setup will cost you somewhere between $50-$100 (USD) depending on your region, the amount of work required and the experience of the person doing the work.

Other Factors That Influence Action

Sensitivity to String Buzz

Along with simply being out of adjustment, other factors that influence guitar action include your own sensitivity to string buzz.

For example, an electric guitar that buzzes when played acoustically may not sound the same when plugged in. In other words, the buzzing doesn’t manifest through the amp.

Whether you can tolerate it or not is up to you.

On the other hand, an acoustic guitar with bad string buzz is outright annoying. For most players, whether acoustic or electric, this is the tipping point for an instrument that needs an action adjustment or complete setup.

Common Problems that Limit Action

Time, age and general build quality have a huge impact on how well a guitar plays. Sometimes, due to these same issues, a guitar’s action can be severely limited.

Moreover, a guitar that has underlying material or structural issues will be aggravated by an overly aggressive playing technique. Does this mean you should lighten up and change your style? Not necessarily.

You can have the guitar looked at or try to adjust it yourself, but best results will definitely be hampered by poor build quality.

Otherwise, common factors that cause a guitar to have compromised action include:

• The condition of the frets
• Distortions in the neck
• Distortions at the body joint or poor neck angle
• Poor quality, maladjusted or no truss rod
• A lifting or cracked bridge on an acoustic guitar
• Seized parts that should otherwise be adjustable
• Mismatched factory parts

I would say the most common culprit would be the neck to body angle, followed closely by a neck condition that’s out of whack.

Luckily, electric guitars with bolt-on necks can have the neck-to-body angle corrected with a simple shim in the neck pocket. Some manufacturers, such as Fender and Peavey, even offer a micro-tilt feature to account for this – a small grub screw adjuster accessible at the base of the neck plate.

Why this feature is even necessary these days is beyond me. Considering the current state of precision manufacturing, surely a neck pocket can be milled to accommodate the compensation offered by an adjustable bridge – yes? (End of rant.)

On the other hand, acoustic and electric guitars with traditional set necks are another story. The only cure for these instruments with compromised neck-to-body angles is a costly neck reset.

Luckily, more forward-thinking manufacturers such as Taylor, Godin and others, design their guitars with this upcoming distortion in mind. They know pressure will eventually take its toll over time and allow for their necks to be relatively easily reset at a minimal cost.

The net effect? Better and more consistent action over the long term.

Mental and Physical Fatigue

Ever find yourself going in circles trying to chase perfection? Like when you’re trying to coax the most out of your guitar, and you wind up second guessing you work asking yourself, “Should it be this?.. or that?..”.

Not a good deal. Too many kicks at the can and you’ll lose sight of the goal.

Take a break, it’s good advice.

What to Do When Parts Don’t Match

Before I close out this section, I’d like to pass a long a curious, yet all too common situation that came across my workbench recently.

A regular client of mine had just purchased an electric guitar he wanted set up – a beautiful new Fender Vintera ’60s Jaguar in stunning Sonic Blue.

As much as he liked the guitar, he said it just didn’t feel right, even after a few well-practiced adjustments.

As soon as I picked it up I knew exactly what the problem was, I could feel it – a severe mismatch between the bridge radius and the fretboard radius.

As soon as I put it on the bench my suspicions were confirmed: the fretboard radius measured 9.5″ whereas the radius of the factory supplied bridge measured 16″!!…

There was no way the action on this guitar was going to be satisfactory by merely adjusting the bridge height. Either the inner strings would always buzz, or the outer strings would always be too high with respect to the middle strings.

Ultimately, the bridge saddles needed some serious tinkering to get things to line up and the action where it needed to be.

After cutting the saddle slots and making the other critical action adjustments, the guitar played ridiculously well.

More importantly, the owner was extremely happy.

View this post on Instagram

A post shared by GuitarNiche (@guitarniche)

Not to bash Fender, but it would seem even the best of manufacturers have their blind spots. In this case, the negative effects of selecting over-generalized “off-the-shelf” parts is fairly evident.

Sadly, this is not the only time I’ve come across situations where mass production and end usage diverge – a beautiful Japanese-made Gretsch comes to mind.

I guess the point is, regardless of what a manufacturer says, check for yourself and don’t take anything for granted.

Common Items You Can Use for Measuring Action

There’s something to be said for keeping it simple. Not to downplay the importance of proper tools, but using materials at hand in a practical way does offer a certain convenience.

For instance, you probably have some spare change in your pocket or on the dresser, and every guitar player uses strings which come in specific gauges.

Both coins and strings can be used as tools for fine measurements. You just need to know their thicknesses.

Here are a couple of charts you can make use of for handy reference:

Coins: USD sorted by thickness

(Keep that spare change handy!)

	Half Dollar	.085″	2.15 mm
	Nickel	.077″	1.95 mm
	Quarter	.069″	1.75 mm
	Penny	.061″	1.55 mm
	Dime	.035″	1.35 mm

Guitar Strings: Common gauges and types in inches, sorted by thickness

(The next time you change your strings, keep the tag ends!)

Summary of Key points

Regardless of the type of guitar, most instruments will follow the same general procedure to maximize action:

1. Determine the current action of the guitar. This can be done by measuring the distance between the strings and the fretboard at the 12th fret.
2. Decide on the desired action. This will depend on personal preference, as well as the type of music being played and your playing style.
3. Adjust the truss rod to alter neck relief. The action through the middle of the neck will raise or lower depending on the amount of curvature.
4. Check and adjust the nut height. The depth of the string slots will raise or lower the action at the headstock.
5. Adjust the saddle for height and fretboard radius. Saddle height will raise or lower the action at the bridge.
6. Fine-tune the action by making small adjustments to the truss rod, saddle, and nut as needed.
7. Test the action by playing the guitar and observing any issues with comfort or sound quality.

Adjusting the action on a guitar can be a time-consuming process, but for any guitarist, it’s important for achieving the best playability and sound quality.

Personal Thoughts, Notes and Observations

Just as there are many different kinds of people and sensitivities, there are that many interpretations of what “good action” could and should be. The type of guitar you play, the style of music you try to push out, your approach to playing etc.

My point is, there is no one perfect type of action thats serves everyone and every guitar. It’s very much a matter of personal preference. This is why I continually used the phrase “acceptable limits” in the adjustment procedures.

Should Action Look Right, or Feel Right?

From my own experience, and doing considerable additional research for this article, I found an overabundance of reliance on the technical aspects of measuring action.

Don’t get me wrong, you gotta have and make use of good tools. But at the end of the day, the ultimate judge in how well a guitar plays is the feedback that comes through your fingers – either it feels right or it doesn’t.

You don’t play with your eyes, you play with your hands. Think about it, which “sense” makes more sense when it comes to playing? Sight – or touch?

When it comes to setting a guitar’s action, I’ve been fooled by tools. Then I set them aside and let my hands, that tactile sense, tell me what’s really going on.

Feel never fails.

Want to continue to improve your skills?

The purpose of Guitar Niche is to help people exactly like you. Those who share a passion for guitars and want to know how to keep them working perfectly.

Without you, the whole endeavour is pointless.

Come back and check out the site regularly, we’re always adding new articles and how-to’s.

Whether you just want to maintain your gear, or be the best guitar tech in your area, or the world! Guitar Niche will be here to help you along the way.

Thanks For Reading!

The post Guitar Action: The Ultimate Guide! first appeared on GuitarNiche.

The Problem: G String Tuning Stability

For decades guitar players have been plagued with various tuning issues with respect to strings – particularly the G string.

Some of these tuning problems are an easy fix, such as simply changing your strings, others require a bit more work such as making detailed adjustments or repairing parts.

If you guitar’s G string (or any another string for that matter) is giving you grief, what’s the underlying cause? And what can you do about it?

If you’ve had the luxury of setting up thousands of guitars, you may have a pretty good idea of what the most likely root causes may be ;)

If not, you’re in luck, the answers to why your electric guitar’s third string is not staying in tune can be found right here:

Why Does the G String Go Out of Tune?

Body heat

Unless you’re cold blooded (or not among the living), there’s not much you can do about body heat. The simple fact is the heat from your fingers will affect the pitch and stability of guitar strings.

Here’s an interesting video that illustrates just how susceptible your G string is to body heat:

The same goes for the other strings, but for most guitars the amount of deflection from pitch is nominal and you probably don’t even notice it. Until you do!

Improper guitar setup

Anything that causes the G string to hang up and not return to its original pitch will ultimately cause tuning problems.

If your guitar isn’t set up properly, you may have loose parts or contact points that bind. For example, nut slots that haven’t been properly dressed out.

Any major point of friction, like the nut or the bridge, or anchors like the tuners are all very common sources of tuning issues.

Old strings

Without a doubt, old strings can be the cause of a whole host of tuning issues – and not just the G string alone.

Finger junk, rot, rust, corrosion and micro-fractures (metal fatigue) will all work against any string’s ability to stay at pitch.

Poor quality strings

Poor quality strings can have a number of negative attributes towards tuning stability.

Most common would be the lock winding at the ball end. If this isn’t done properly by the manufacturer the string’s pitch will continue to drop due to slippage as it gets played – often in a relatively short time.

Improperly installed strings

Any string that’s not wrapped around the tuning post enough times is a prime candidate for slippage. Of course the same could be said for the other strings.

Similarly, tuning problems can stem from having too much string wrapped around the post. The pitch will tend to drop over time as each successive wrap slowly stretches out.

The mass or gauge of the G string

String mass has a huge influence on tuning stability. Just as a string that’s too thin for a given pitch can be unruly, a string that’s too fat is just as bad.

Because a typical third string G has the largest diameter for a plain string, strange things start to happen once it gets past a certain thickness, for instance .020 gauge and up.

In a nutshell, as the linear density (mass) increases, the more the string will warble. This is especially evident in the upper frets. You’ll hear the pitch flutter inconsistently as it starts to compete with its own vibrations and the pull from the magnetic field(s) of the pickups.

Excess mass will also make a G string virtually impossible to intonate accurately.

Finger pressure

The amount of finger pressure you use and your general playing style can affect a string’s tuning. If your instrument has high or tall frets, and you play aggressively with a tight grip you will literally push the string out of tune.

If you’ve ever played a scalloped fretboard, you know just how critical finger pressure is in keeping the guitar sounding in tune.

The environment is too cold

Imagine you’re playing live on an outdoor stage in sub-zero temperatures (I’ve experienced this). That’s a minimum temperature differential of 67 degrees fahrenheit or 37 degrees celsius.

This difference between the cold instrument and your body temperature is pretty drastic. Without taking some kind of precautions, the cold will definitely have an affect on the stability of your instrument’s tuning.

String tension at pitch

For most players, the 3rd string regardless of pitch is usually referred to as “the G string”, yet the pitch has a ton of influence as to how the string reacts with the guitar.

For instance, a drop-type tuning will reduce tension causing it to react “wildly” or “wrangley” as it becomes more elastic.

In other words, the lower the string’s pitch goes, the more prone it is to tuning issues.

Headstock design

For tuning stability, a straight-pull string design is always going to be better.

Ideally, the string should span directly from any contact point to its anchor with little or no deflection.

The tradeoff though can be loss of tone because the amount of pressure needed to transfer string energy through the main contact points, the nut and bridge, is lower.

It’s well known that the design of the traditional Gibson headstock with its tilt back and angled nut slots is prone to tuning instability.

This double whammy of string pressure may be great for tone and sustain, but has to be dealt with carefully if you want to rely on it to stay in tune.

Stable Pitch vs Being in Tune – There’s a Big Difference

Pitch stability and being in tune are very closely related elements in that they’re both based on frequency, yet their ideal conditions are completely different.

Pitch stability implies any single string on its own whereas being in tune includes the other strings as a group.

A G string that can return to its original frequency after a generous under-the-chin bend is called stable – and extremely desirable.

A G string that is in complete harmony with respect to the other strings across the entire neck is called in tune – which is an entirely different thing.

Tuning Compensation

The vast majority of mass produced guitars use what’s called equal temperament tuning. In other words, each fret represents 100% of a semitone for every note on every string across the entire neck.

The problem is, this is not necessarily an ideal musical or harmonious relationship between notes or intervals on separate strings. We can thank Pythagorus for figuring all this out eons ago.

When we compared a guitar to a violin for instance, violin intonation is a product of precise finger placement whereas on a guitar, the intonation points are fixed.

Suffice to say, with the help of compensation systems such as modified fret placement (microtonal adjustments), compensated nuts etc, your chord work and in-tune-ness is much more pleasing to the ear.

String Theory

If you really want to get your hands dirty with the science of guitar strings, check out the incredibly in-depth article “String Theory – The Physics of String Bending and Other Electric Guitar Techniques” by David Robert Grimes who uses math to explain the virtuosity of artists such as Eddie Van Halen, David Gilmour, Steve Vai and others.

Solutions To Keeping Your G String In Tune

Get your guitar set up properly by a professional

Considering the cost of a professional setup, it’s a small price to pay for a guitar that is reliable and stays in tune – G string included.

A good technician will be able to address any concerns you have regarding the sloppy G and other issues that keep you from enjoying the guitar to its fullest.

Use a wound 3rd string instead of a plain G string

Replacing a solid, plain G string with a wound or “composite” string will help stabilize the string’s vibration.

Because a wound string is made of two parts: the core and the wrap, it’s also thicker. This added thickness and construction (linear density) lowers the string’s fundamental frequency which makes it vibrate slower.

While the higher tension of a wound G is normal on an acoustic or jazz guitar, the trade off for electric guitar players is in less flexibility. Pushing around a wound 3rd string requires considerable knuckle power.

It’s also important to note that the nut also has to be re-cut to keep the thicker string from binding in the slot.

Use locking tuners

Installing locking tuners is a superb way of dealing with tuning instability. By eliminating the wraps and thereby extra string length required for traditional tuning machines, tuning stability goes up significantly.

It’s no wonder locking tuning machines have become a popular upgrade for guitarists, and often offered as a standard feature on better instruments.

Use a lubricant

Whether you’re just playing vibrato or doing serious bends, strings have to slide back and forth discretely through the nut slots and across the bridge.

Lubricants, whether pencil graphite or specialty products, help to decrease the friction that can cause strings to hang up at these main points of contact.

Use quality strings

Better string manufacturers will use overall better materials and have high quality controls in place. String consistency in thickness and finishing processes such as secure lock twists at the ball end will help ensure reliable tuning.

Make sure your strings are fully stretched out

Any string that’s not fully stretched out will drive you crazy. All your strings must be fully stretched to allow their pitches to normalize or return to zero, especially after a bend.

Fresh strings should get at least three significant stretches before you can rely on them to stay in tune. Waiting an extra day afterwards is even better.

Make sure your strings are properly installed and trimmed

A simple thing like the uncut tag end of a string wagging off the end of the headstock could be the cause of why your G string is always out of tune.

As mentioned, too little or too many wraps around non-locking tuner posts should be avoided. And whenever possible, use a luthier’s knot to make sure the strings are good and secure.

What About Fender-style Non-locking Tremolo Systems?

The #1 reason the G string is even more problematic on a vintage style Fender-style tremolo system is because the nut isn’t cut and dressed properly.

How the strings are installed at the tuners, and the type of tuners themselves (locking is always better), can make the difference in whether the guitar stays in tune as a whole.

It’s also good practice to lubricate the pivot points at the bridge as well.

Understand the Personality of Your Guitar

If your guitar’s pitch is just naturally prone to wandering a little regardless of all the fixes, you can save yourself a lot of aggravation by accepting that it’s just the personality of the instrument.

Some guitars are like that. Maybe the G or B strings take a second to fall into place when you first up the guitar.

Either way, it helps to anticipate the changes, and a little expectation goes a long way.

The post Why Is The G String Always Out Of Tune? (Mystery Solved!) first appeared on GuitarNiche.

if you had to start from scratch, what would be the essential must-have guitar setup tools you’d need to get started?

Guitar Setup Tools 101

Whether you prefer electric or acoustic guitars, here’s a comprehensive guide to all the guitar maintenance tools you need to tackle most common guitar adjustments like a pro!

Even better, when combined with our guide on How To Set Up A Guitar, you get the full power of a one-two punch!

In other words, if you like doing things yourself, this is the perfect guide to assembling your own guitar tools kit – without having to break the bank, or be a rocket scientist.

Furthermore, if you’re new to the instrument, it’s still totally possible to set up your own guitar without having to pay a pro and wait while it’s in the shop.

Or maybe you just want to improve the factory setup so it plays exactly how you like it.

Whatever your reasons, if you’re confident you can do a reasonably good job, you’ll at least need a basic guitar setup kit to get started.

With experience, you can always add more specialized guitar luthier tools that let you deal effectively with bigger problems.

We hope you find this article helpful, informative and unbiased. By using links on this page we may receive compensation at no extra cost. If you do use them, thank you so much!

What Tools Do I Need to Set Up a Guitar?

For convenience, the tools are broken down into three main sections in order of priority starting with guitar tools for beginners. The individual guitar tools sections are:

Essential Tools, Intermediate and Advanced Tools respectively.

The first list is the basic tech guitar tool kit anyone should need to start working on their own guitars.

As your skills improve , the remaining guitar adjustment and repair tools in remaining lists can be added gradually.

Since many players appreciate a fine setup but don’t service their own guitars, either because they don’t have the time or the desire to do so, you might even consider doing guitar setups for other people.

Other than the following straight forward items, the remainder of the tools you’ll need will be a little more specific to working on guitars.

30+ Guitar Setup Tools That Work

Let’s be clear about one very important fact; there are gadgets designed to give you the illusion of practicality, then there are those essential guitar setup tools that actually function in the real world, and you can depend on on a regular basis.

Question is: do you prefer the former, or the latter? Personally, I prefer to get the job done with as few headaches as possible.

Having said that, what follows is a comprehensive, meat-and-potatoes list of guitar setup tools derived from practical (and professional) experience spanning over 30+ years:

Essential Tools

Intermediate Tools

Advanced Guitar Setup Tools

Note: Most of these tools are related to fretwork for the levelling, crowning and polishing processes. Since re-fretting involves a next level of skill and expertise, the tools required are omitted and will be found in an upcoming separate article.

Some Guitar Setup Tools are Obvious, Others Can Be Repurposed

Even the best guitar setup tools kit includes items that are relatively obvious. They can be found in utility drawers, in the garage, or your existing arsenal of general tools.

Everyday tools you probably already have:

• a utility knife
• CA glue
• painter’s tape for masking
• lots of sandpaper in various grades
• screwdrivers of various kinds
• utility files of various types

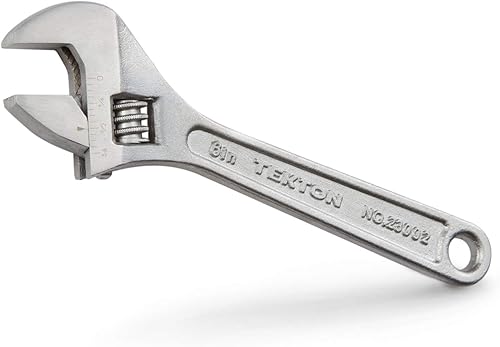

• a small 1/4″ socket wrench set

• scissors
• toothpicks
• cordless drill with adjustable clutch
• drill bits of various sizes
• small (very bright) flashlight
• a small hammer
• Cleaning cloths or quality paper towels

Oddly enough, a couple of the more frequently items I personally use for guitar maintenance are tongue depressors and fine wooden dowels (about 1/8″ – 3/16″). They’re dirt cheap and you can find them in just about any craft store.

The tongue depressors come in handy for keeping strings away from the fretboard area (loosened strings can be safely corralled under the neck).

When making floating system adjustments, a tongue depressor can be set flush under the back end of the trem system to keep it from drawing back down into the body.

Another trick is to taper the flat edge so it can be used to gently pry up guitar knobs.

sorts of things; from filling larger holes, to probing and safely cleaning out gunk in tight spots when sharpened to a point.

Another way to look at it is to think a little outside the box. You don’t necessarily need all the setup tools mentioned on this page.

You can also find substitutions and variations for each tool, but the list as it is makes a great start!

What Tools Do I Need to Change Guitar Strings?

The tools required to change strings on a guitar are pretty minimal, especially if it’s just a matter of replacing your strings without any other guitar maintenance issues.

Here’s a quick list of guitar restringing tools every player should have readily available:

Tools for changing guitar strings

Guitar Tuner

Check Availability!

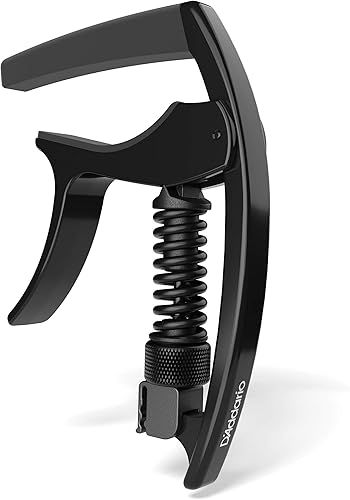

Guitar Capo

Check Availability!

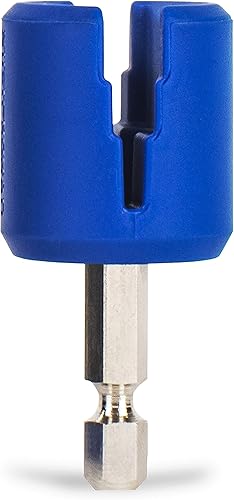

String Winder

Check Availability!

Side Cutters

Check Availability!

Getting Started With Ready-Made Guitar Setup Kits

If you want to keeps things quick and simple, here are a few pre-packaged guitar setup kits and guitar tech equipment to help kick-start your skills:

Basic Guitar Tool Kit

26 Pc Guitar Repairing Tool Kit

Check Availability!

Better Guitar Tool Kit

Ernie Ball Guitar Tool Kit

Check Availability!

Best Guitar Tools Kit

27 Pc Guitar Tool Set

Check Availability!

The post Guitar Setup Tools Guide (How To Make Your Own Player’s Tool Kit) first appeared on GuitarNiche.

What’s the Best Telecaster Guitar Kit?

Apart from buying a Telecaster guitar, many passionate guitarists decide to take a DIY approach and build one.

With numerous guitar kit manufacturers to choose from, not all of them offer the same level of quality and durability of components.

Buying a kit from a substandard manufacturer will end up with inferior parts making what should be a very gratifying project, a miserable experience.

For this reason, sourcing a good quality Telecaster guitar kit is imperative, and we’re about to help you do so.

In this article, we’ll list the five best DIY Telecaster guitar kits, recommend the best brand, and point out several details to consider when buying your guitar kit.

We certainly hope you find this article helpful, informative and unbiased. Just so you know, we may receive compensation if you use the links on this page. If you do, thank you so much!

Telecaster Guitar Kits Compared

Product	Image	Rating	Key Feature
*TOP PICK* #1 SOLO TCK-1 DIY Electric Guitar Kit		(4.7)	Excellent quality considering the low price
#2 SOLO TCK-100 DIY Semi Hollow Electric Guitar Kit		(4.7)	Outstanding pre-made wood cutting, drilling, and shaping
#3 SOLO TCK-1SM DIY Guitar Kit With Spalted Maple Top		(4.5)	Offers superior materials such as spalted maple and top binding
#4 The FretWire TL Style DIY Electric Guitar Kit		(4.5)	Custom fitted neck joint for maximum tone
#5 StewMac T-Style Electric Guitar Kit		(4.5)	Mahogany body and neck are higher quality for its price range

Top 5 Telecaster Guitar Kits in Review

1. Solo TCK-1 DIY Electric Guitar Kit

SOLO TCK-1 DIY Electric Guitar Kit

This model produced by SOLO Guitars, is the most affordable guitar kit in our roundup. Still, the manufacturer managed to put together many high-quality components in this item.

Solo TCK-1 Kit Overview

This SOLO Telecaster electric guitar kit features a basswood body with a poly sealant. The neck is made of maple, whereas the fingerboard’s material is rosewood. The construction is a bolt-on, and there are 22 frets.

Solo TCK-1 Kit Highlights

The kit has gorgeous black binding around its basswood body. Assembling the guitar can be done quickly due to the pre-shaped headstock.

This might not be ideal if you’re looking for a customized headstock carve, but it will save you some time while putting all the pieces together.

Solo TCK-1 Features

• Basswood body with a poly sealant
• Maple neck
• Rosewood fingerboard
• Predrilled holes
• Pre-shaped headstock

SOLO TCK-1 DIY Tele Kit Key Points:

The Good

Apart from excellent materials, this kit boasts many other benefits. First, all the tough woodworking is already complete.

The same goes for all the hardware. This model also has a pickguard assembly, strings, a neckplate assembly, and all the other components necessary to put the guitar together.

Additionally, the price is one of the most significant advantages of this kit. It’s the cheapest item here, and you’re highly unlikely to come across equally good equipment at the same price.

The Bad

The only hole that’s not predrilled is the string tree. This may not be a deal-breaker, but having an option to use this hole would have been nice.

Moreover, once assembled, the guitar is one of the heaviest models available, which might not suit some players.

What We Like

• • • Cost-efficient
    • Solid materials
    • Complete woodworking
    • Contains all the pieces necessary for the assembly

What We Don’t Like

• • • Lack of a string tree hole
    • Quite heavy

Check SOLO TCK-1 DIY Guitar Kit Availability >>

2. Solo TCK-100 DIY Semi-hollow Electric Guitar Kit with Maple Top

SOLO TCK-100 DIY Semi Hollow Electric Guitar Kit

This is another kit found at SoloMusicGear.com. The item is slightly pricier, and some materials are different from the previous entry.

Solo TCK-100 Kit Overview

Just like the TCK-1 model, this TCK-100 Kit contains 22 frets and a bolt-on construction. The body is also made out of basswood, but this item has a maple top. The fingerboard is maple as well.

Solo TCK-100 Kit Highlights

The guitar has stylish white binding enclosing the body. The manufacturer has already handled the challenging wood cutting, drilling, shaping, leveling, and dressing.

The kit includes all the items you need for the assembly, such as mounting screws, an Allen key, strap buttons, strings, etc.

Solo TCK-100 Thinline Kit Features

• Bolt-on construction
• Basswood body
• Maple top and fingerboard
• Straightforward wiring
• Pre-made fret leveling and dressing

SOLO TCK-100 Tele Kit Key Points:

The Good

This guitar kit is convenient for several reasons. For example, the assembly is rather straightforward. The wiring is simple, and the nut slot depth setup is quick and easy.

After you’ve put all the components together, you’ll find that the guitar is relatively light and easy to play. Lastly, the maple parts give your instrument an appealing appearance.

The Bad

As for the downsides, the neck pocket fit isn’t perfect. Although it sits within acceptable parameters, it could be more snug. Another problem is that there are no instructions on removing the sealer from the body and neck.

What We Like

• • • Simple installation
    • Easy wiring and the nut slot depth setup
    • Lightweight
    • Elegant appearance

What We Don’t Like

• • • The neck pocket fit isn’t ideal
    • No advice on how to get rid of the sealer from the neck and body

Check SOLO TCK-100 DIY Semi Hollow Kit Availability >>

3. Solo TCK-1SM DIY Electric Guitar Kit With Spalted Maple Top

Solo Guitars TCK-1SM DIY Guitar Kit

The SOLO TCK-1SM guitar kit is another stunning entry from SOLO. It’s one of the more expensive items on this list, but it justifies the cost due to various properties.

SOLO TCK-1SM DIY Kit Overview

This DIY Telecaster guitar kit features a great look. The body is made of basswood with a stunning spalted maple top finished with a beautiful dark binding for contrast.

The neck and fretboard are constructed of high-quality maple and rosewood respectively. The kit also sports chrome hardware with 22 medium standard frets.

TCK-1SM DIY Kit Highlights

The kit is easy to assemble and is an outstanding base for a fun DIY project. Again, the materials are excellent, and the two single coil pickups are punchy with twang to spare.

Moreover, every hole is predrilled, meaning that the beginners will just need to screw in the parts that come with the kit.

You may need to do some finish coating and sanding since the the back of the neck is unfinished. However, this can give you a lot of freedom – choose any finish you want.

On top of that, there’s no detailed woodworking involved with this Telecaster-style DIY kit.

TCK-1SM Tele-Style Kit Features

• Bound basswood body with spalted maple top
• Rosewood fretboard with maple neck
• Vintage-voiced single coil pickups
• Predrilled holes
• Chrome hardware
• Step-by-step instructions

SOLO Guitars TCK-1SM Tele Kit Key Points:

The Good

Despite being modestly priced, many other kits on the market don’t come close to this model. Namely, you usually don’t see complete user-friendly kits this visually appealing in this price range.

The same goes for the single coil pickups, which help provide traditional sounds. Finally, even novice guitar players will have an easy time putting the kit together.

The Bad

The unfinished maple of the neck does give some freedom to experiment with the finish, but this means you’ll have to put in some extra work with the guitar build.

What We Like

• • • Quality materials
    • Cost-effective pricing
    • Simple assembly

What We Don’t Like

• • • Some finishing may be required

Solo TCK-1SM DIY Electric Kit With Spalted Maple Top Availability >>

Looking for Inspiration?

Check out Fender’s Telecaster Collection showcasing the classic design in any combination of color and configuration you can imagine!

4. The FretWire TL Style DIY Electric Guitar Kit

DIY Electric Guitar Kit – TL Build Your Own Guitar

The next item on our list is the DIY TL Guitar Kit manufactured by The FretWire.

The FretWire TL Overview

This model features excellent materials. The body is made of basswood, while the choice for the fretboard and neck is maple. There’s also the standard fret style with 21 frets and chrome hardware.

TL Style Kit Highlights

Each component in this kit is designed to fit the body perfectly. It includes a predrilled body, a fretted neck, and all hardware and electronics required for installation. This FretWire DIY Tele guitar kit also comes with a pre-installed truss rod and a bolt-on neck joint.

TheFretWire DIY TL Kit Features

• Basswood body
• Maple fretboard and neck
• Chrome hardware
• Bolt-on neck joint
• Pre-installed truss rod

FretWire Tele Kit Key points:

The Good

Out of the box, the kit looks great due to the ash body. The wood is lightweight, and once you build your DIY Telecaster guitar, you’ll find that the material gives it a pleasant tune. Moreover, the ash body will provide you with good sustain.

Additionally, this model features the S-S pickup configuration. Therefore, it’s ideal if you’re looking for articulate tones on your electric guitar.

Lastly, the price isn’t steep at all, considering the high-quality components this kit provides.

The Bad

To get the desired final product, you might need to do some patching and sanding on your guitar. Plus, you’ll need to add some holes to mount the bridge and pickguard.

The FretWire TL Style Electric Guitar Kit in Review

What We Like

• • • Graceful look
    • Lightweight design
    • Pleasant sound and good sustain
    • Articulate tones
    • Reasonable price

What We Don’t Like

• • • You’ll need additional holes for the bridge and pickguard
    • Some patching and sanding may be necessary to get the desired finish

Check The FretWire TL Style DIY Kit Availability >>

5. StewMac T-Style Electric Guitar Kit

StewMac T-Style Electric Guitar Kit

The final contender is a T-style electric guitar kit produced by StewMac. It’s one of the most prominent brands on the market, and this item delivers in many areas.

StewMac T-Style Kit Overview

This guitar’s body is made of mahogany, and the same material is used for the neck. There’s also the pre-fretted Indian Laurel fingerboard. Moreover, the neck has a blank peghead and a pre-installed two-way truss rod.

StewMac T-Style Kit Highlights

The body and neck are made of higher-quality mahogany than other Telecaster guitar kits that go for the same price. The parts fit each other perfectly, and the fretwork itself is excellent.

Also, the tuners are solid, and you don’t need to replace them. The same goes for the pickguard, which is great-looking and thick.

StewMac T-Style Kit Features

• Mahogany body and neck
• Pre-installed two-way truss rod
• Pre-installed fingerboard inlays
• Classic Tele-style bridge and chrome hardware
• Thick pickguard
• Pre-slotted nut

StewMac T-Style Guitar Kit Key Points:

The Good

This StewMac Tele kit features a marvelous price-to-quality ratio. You receive all the electronics and the hardware necessary for the installation, and most of the materials are of good quality.

The body comes in three pieces, but all of them blend in very well. The holes are accurately drilled, and all the Tele guitar kit instructions are clear and easy to follow.

The Bad

While most of the construction is satisfactory, some parts aren’t up to par. More specifically, the pickups included in the kit are low-quality ceramic pieces. If you want to get a better tone out of this instrument, you’re going to need to swap them out.

Another potentially problematic issue can be fret sprouts. Though fairly common with inexpensive, quick dried necks, the sharp fret ends that protrude beyond the sides of the fretboard need to be removed to make the neck comfortable.

What We Like

• • • Relatively affordable
    • Most of the kit includes high-quality materials
    • The three body pieces are a snug fit.
    • Accurately drilled holes
    • Clear and simple instructions

What We Don’t Like

• • • Low-quality pickups
    • Relatively expensive

Check StewMac T-Style Guitar Kit Availability >>

Telecaster Guitar Kit FAQs

When purchasing your Telecaster build kit, you want to look for the most renowned and reliable brand available.

This way, you’ll make sure all the pieces of your kit fit together perfectly and that the guitar sounds good once assembled.

In this section, we’ll recommend the finest Telecaster guitar kit on the market and present crucial details you should bear in mind when buying one.

Are DIY Guitar Kits Any Good?

Not all guitar kits are equally good, and this depends on the manufacturer. For example, reputable brands, such as Solo Guitars, are almost guaranteed to sell you a high-quality item.

Therefore, you should buy your kit from a trusted company to significantly lower the risk of purchasing a defective instrument.

The main factor that determines whether your kit is good is probably durability. You should buy a guitar that’s verifiably strong, stable, and sturdy.

It may force you to spend a bit more, but at least you’ll know you’re getting your money’s worth. If the wood is high-quality and sturdy, you’re much more likely to have a long-lasting instrument.

Another detail you should consider is the customizability. Some manufacturers let you customize almost every component in your kit.

Simply put, if you want to build a unique guitar, try to buy a kit that gives you the most freedom to experiment.

Are FretWire Guitar Kits Any Good

Update:

Unfortunately, products from The FretWire have become nearly non-existent. Whether this is fallout from recent supply chain issues over the last few years or other business related decisions, we don’t know. Only time will tell.

We’ve covered a couple of FretWire Tele kits here, and we wouldn’t have if we thought they were junk.

The brand is known for creating quality products that both beginners and advanced guitar players can enjoy.

The main parts of the guitar (the body and neck) are pre-drilled and well fitting, plus their kits include all the items you need to put together a fully functional electric guitar.

Whether a mahogany or ash body, and with fast playing necks, rest easy knowing that FretWire offers guitars that sound and perform great.

They also offer a convenient option to upgrade the tuners and pickups to professional brands right off the order page.

Are Solo Guitar Kits Any Good?

Solo Guitar kits can be a great grab. Even though it’s not the most renowned brand in the guitar kit industry, the manufacturer still has some excellent items.

As we mentioned in the reviews above, the company makes some of the most affordable guitar kits out there. Best of all, this doesn’t come with a considerable drop in quality.

Solo features several different body materials, such as basswood. You can also choose from solid options, such as maple and mahogany, for the neck and top. For the fingerboard, pick rosewood or maple.

Overall, despite not belonging to top-class guitar kit manufacturers, Solo still offers some decent, cost-effective items.

Is It Hard to Make Your Own Guitar?

Despite how clear and straightforward some instruction manuals are, making your own guitar can be quite challenging. Many details can lead to frustration while putting your instrument together.

For instance, if you’re used to buying fully-assembled items from stores, you know how straightforward it is – plug it in and play it.

With guitar kits, the learning curve associated with DIY assembly is steep because it consists of various components and processes.

Furthermore, building a guitar can be quite time-consuming. Even though the kit features all the necessary components, you’ll need to assemble them in the correct position and sequence.

Another obstacle could be looking for other parts if you purchased a basic kit only.

On top of that, there are several tasks you may need to perform on your guitar. These include cutting, sanding, drilling, painting, gluing, staining, etc. All these jobs require a lot of time and patience, depending on your skill level.

Another potential hindrance is the lack of necessary tools for the job. If you don’t have all the required items, the assembly will take even longer.

A few essential tools include:

• Ruler

You’ll need a ruler to keep the distance between components accurate. A good practice is to get a ruler with measurements in both millimeters and inches. You don’t have to buy a cutting-edge item – all you need is an accurate ruler.

• String Cutter

Trimming your guitar strings to an appropriate length requires a sharp string cutter. Since the strings for Telecasters are made out of metal, a pair of scissors won’t do the trick.

• Truss Rod Wrench

If your guitar kit doesn’t have a truss rod wrench, you’ll need to buy one. The item is necessary to adjust the relief of your guitar’s neck, and the proper size depends on the size of the truss rod bolt.

• Screwdriver

Screwdrivers will allow you to loosen or tighten the bolts. They’re also used to adjust the intonation. Just make sure that your screwdriver matches the size of the screws and bolts from the kit.

• String Winder

Twisting the tuning pegs using just your hands is tedious. That’s why you should use a string winder. It’ll expedite and facilitate the whole process.

• Hex Keys or Allen Wrench

Either of these tools will help you adjust nut pressure, neck, saddles, pads, and other parts.

• Work Mat

A work mat isn’t essential but will help shield the guitar from slips and scratches during the assembly.

Is It Cheaper to Build Your Own Guitar?

If you want to get a build-your-own Telecaster guitar kit and assemble the instrument by yourself, it can be both cheaper and costlier than buying a finished product. It ultimately depends on what you consider to be the basic price point for a finished guitar.

For example, some guitar kits require additional materials and components, such as pickups, that significantly raise the project’s cost. Additionally, a fully parted out guitar using premium supplies will run you many hundreds of dollars.

Another factor that influences the total cost is whether or not you have all the tools. If you lack some of them, the price goes up even further and can exceed the cost of buying a pre-assembled guitar.

What Are the Best DIY Guitar Kits?

We’ve already listed the top five build-your-own Telecaster kit options. To sum up, FretWire appears twice in this roundup with the Ash TL and TL Thinline Style guitar kits.

Solo Music Gear also has two noteworthy, affordable models – the Solo TCK-1 and the TCK-100 Semi-hollow guitar kits. Finally, StewMac have deserved their spot on the list with the top-grade StewMac T-Style electric guitar kit.

It’s worth noting though, if price is your primary driver, the TC-10 from Saga is well worth a look for those on a budget.

Who Wins the Best Tele Kit Shootout?

In our opinion, the best overall brand is the Solo Guitars (solomusicgear.com) with their two top options – the TCK-1 DIY and TCK-100 Thinline Style guitar kits. Both kits have a lot to offer, but the beginner-friendly TCK-1 is the best Telecaster DIY guitar kit at the moment.

Each item features high-quality tonewoods (basswood and rosewood) and has appealing maple components. Also, the assembly process is relatively straightforward in both cases.

Overall, the Solo TCK-1 guitar kit is the winner because of its traditional style and slightly lower price. It’s sibling, the TCK-100 Thinline Style, offers the same durability and ease of assembly. It’s marginally pricier but offers the same familiar style and functionality players prefer.

All in all, we pick the TCK-1 from Solo Guitars as the superior Telecaster guitar kit.

EDITOR”S PICK!

SOLO TCK-1 DIY Electric Guitar Kit! >>

The post Best Telecaster Guitar Kit (Complete Guide with Reviews) first appeared on GuitarNiche.

We certainly hope you benefit from the information we provide in this article! Just so you know, we may receive compensation if you use the links on this page. If you do, thank you so much!

Epiphone Limited Edition 1959 Les Paul Standard Review – Is It The Classic You Always Wanted?

Epiphone Limited Edition 1959 Les Paul Standard Electric Guitar

Epiphone 1959 Les Paul Overview

Designed in collaboration with Gibson’s Custom Shop, the Epiphone Limited Edition 1959 Les Paul promises to bring a lot to the table for long time Les Paul fans.

Resting on the rich history of one of the world’s most collectible guitars, Epiphone’s much more affordable version of Gibson’s historic 1959 Les Paul Standard is being touted as the “poor man’s 59 Les Paul”.

Along with the recently redesigned headstock (a great cosmetic improvement in our opinion), the Epiphone Limited Edition 1959 Les Paul Standard definitely has a foot in the door.

In this review, we’ll look at the quality of fit and finish, playability, and how the guitar sounds, and perhaps most importantly, the overall value if you’re in the market for just one more guitar.

Epiphone has grown into one of the world’s most versatile guitar manufacturers. Originating in Turkey in the 1800s, the company is now well established with a long history of its own, and of being associated with its parent company Gibson.

Considering the relationship between the two companies, it makes a lot of sense to release a tribute to the 1959 Les Paul Standard, pump up the quality, and add an extra layer of respectability to the Epiphone brand.

Retailing at around the eight hundred dollar mark (USD), the re-envisioned 1959 Standard from Epiphone makes for a great deal that should appeal to fans of Les Pauls – especially when you add in the vintage-style pink plush lined case which is included.

A Classic Les Paul Design for Everyone

In general, the Les Paul range of guitars is one of Epiphone’s most featured products with the instantly recognizable shape automatically conjures up an instrument with plenty of history.

At its core, the combination of the mahogany body and maple cap, plus the solid mahogany neck are the basis of a traditional Les Paul sonic footprint. Mix in a pair of killer Burstbucker pickups as the output engine and you immediately have a recipe for great tone.

Sporting a great pedigree combined with great build quality, the Epiphone 1959 Les Paul Standard Electric Guitar is certainly a far more affordable option compared to its more purebred counterpart.

Currently available in three classic color schemes: Aged Dark Burst, Aged Dark Cherry Burst, and Aged Honey Burst gloss, all three finishes give a respectable nod to the original cosmetic designs.

Epiphone 1959 Les Paul Standard Features:

• Inspired 1959 Gibson Les Paul design
• American-made Gibson USA Burstbucker pickups
• Mallory 150 polyester film tone capacitors
• CTS pots and Switchcraft toggle switch
• Figured AAA maple top on a mahogany back
• Rounded Medium “C” mahogany neck
• Aged gloss finish
• Tune-O-Matic bridge
• Epiphone Vintage Deluxe 18:1 tuners

Finish Variations to Choose From:

Aged Dark Burst

Aged Dark Cherry Burst

Aged Honey Burst Gloss

Superior Electronics that Perform

As mentioned, the Epiphone Limited Edition 1959 is powered by two fabulous USA-made Burstbucker pickups: a Burstbucker 2 in the neck position for more of a 57 tone, and a Burstbucker 3 in the bridge for full-on PAF tone.

In the main control cavity, you’ll find quality CTS pots combined with Mallory 150 polyester film caps which together provide excellent overall control over output.

When we inspected the interior of the electronics cavity, the only real concern we had (other than the unsightly wiring itself)  was the lack of extra insulation around the braided pickup wires. Not that it’s a huge issue, but the possibility of a short across live contacts should be taken into consideration.

The toggle switch is Switchcraft, a well respected brand known for producing rugged long-lasting electronic parts found in great guitars.

On the face of the instrument, the vintage-style gold bell knobs sit proud just as they would on a real ’59.

As many players know, superior electronics go a long way in producing the sounds you want. Overall, this is a mod-free, no upgrades required electronics setup right out of the box.

Click Here to Read the Latest Epiphone 1959 Standard Reviews >>

Warranty Coverage That Lasts

Unlike many companies on the market, Epiphone offers a lifetime warranty. As stated on the Epiphone website, “Your new Epiphone instrument is warranted to be free from defects in materials and workmanship for the life of the original retail purchaser”.

That being said, you really can’t go wrong trusting the company will take care of any issues with their Limited Edition 1959 Les Paul Standard.

While this warranty doesn’t necessarily cover everything, it does help ensure that you don’t have to worry about manufacturing issues. Considering most other companies only offer a one-year warranty, this is an exceptional offer.

How Does the Epiphone 59 Les Paul Standard Sound?

The Burstbucker pickups are particularly refined producing full, rich, classic (yet controlled) tones. There are few more refined sounding guitars on the market making this is one of your best options for an electric powerhouse of an instrument.

Plugged in, the controls interact on a professional level – which is to be expected. As you roll back the volume controls, the pickups clean up nicely, especially when put through a good tube amp.

There’s no hint of the muddiness that comes from cheaper pickups at all. Much the dynamics between the controls can be attributed to the original 50’s style wiring.

When full out, the pickups are dynamic and responsive to touch and attack – just as they should be.

The tone controls work excellently within the network, rolling off highs in a smooth contour. The .022 Mallory caps easily shunt the hi frequencies well into the ground as you approach zero.

In fact they go so deep some players might find the final cutoff a bit much. That being said, it’s better to have too much in this case rather than not enough – you can still dial in what works for your ears.

What’s the Build Quality Like?

Our first impression was very good. On the workbench the guitar was resonant and rang out loud, long and strong with a single rake of the strings. Overall, the fit and finish seemed pretty clean.

As expected, the full weight mahogany construction is typical of a Les Paul. The body itself is two pieces and capped with a maple which is finished off with an attractive AAA maple veneer to complete the visual.

The neck was beefy with its rounded medium C contour but was not uncomfortable. A scarf joint was evident where the neck started to flare into the headstock at the back.

It’s worth noting that there isn’t a true “59” one-size-fits-all neck profile. Because the original instruments were not so machine made, the more hands-on manufacturing of the day produced variations in neck profiles. That being said, we do have somewhat of a generalized average to go by.

Moving on, the Indian Laurel fretboard was a little dry and happily soaked up a few drops of lemon oil conditioner. The medium-jumbo frets were clean and even, but definitely had a machine finish to them. Nonetheless, the guitar played flawlessly with ringing notes and easy bends.

The newly minted Epiphone Deluxe vintage tuners, much like Kluson keystone tuners, have an excellent smooth feel indicating a high level of attention to machining detail. With an 18:1 ratio and maching vintage-style inserts on the headstock face, the overall effect is indeed complete.

During our setup procedure we noticed a few small things that needed attention:

• The slots of the Graph Tech NuBone nut were a little high and needed to be filed down to be more comfortable. Keep in mind, it’s not uncommon to have nut slots a little proud from the factory. If you play a lot of slide, this is a good thing and is anticipated.
• The knurled nut for the toggle switch was a little loose. Again this is a fairly common issue with some new guitars in general, and was easily tightened up using an appropriate tool.
• We noticed the jack was a bit unnaturally stiff when plugging in the guitar. The problem was due to the inner positive contact bumping into the inner wall of the route. The remedy was to simply loosen the jack, rotate it a few degrees, tighten it back up and voila! Problem solved.
• Cosmetically, there was a noticeable flat spot at the very top part of what should be the arch. The pickup surrounds were designed to marry with the complete curve therefor there was a small gap evident. With a little work, they could be trimmed to fit.
• Lastly, there was a little bit of a sharp edge in a few spots where the binding transitioned to the top. We suspect the uppermost part of the binding liquified a little during the polishing phase producing the edge. The fix was easy and the excess was removed cleanly with a little help of a fine file.

Should you wish to trade or sell the instrument down the road, the resale value is very much in the name. As long as the instrument is kept in good condition, the Epiphone brand will allow you to recover a good chunk of its value.

Epiphone Les Paul Standard Key Points

Epiphone Les Paul 1959 Standard Electric Guitar in Review

What Do Epiphone 1959 Standard Users Think? >>

Compare other Epiphone guitars:

Final Thoughts On The Epiphone Les Paul 1959 Standard Limited Edition: Is It The Guitar For You?

The Epiphone Les Paul 1959 Standard from Gibson definitely offers a huge bang for the buck. When you factor in the premium electronics and vintage style hardshell case, these upgrades alone make for a good deal.

It’s definitely not the original by any means – but it’s certainly in the wheelhouse. There are a few small details that could be improved which. when you consider the price point, are easily offset.

Whether you’re a collector or an enthusiast, this guitar is designed to hit the sweet spot for anyone looking for a vintage-inspired Les Paul purchase.

Check Epiphone 1959 Les Paul Standard Availability Here! >>

Manufacturer Info:

Website: https://www.epiphone.com/

About: Since 1873, Epiphone is one of American’s oldest and most revered instrument makers.

The post Epiphone 1959 Les Paul Standard Electric Guitar Review [Limited Edition] first appeared on GuitarNiche.

Whether you decide to learn the process for your own interest, or for compensation, or to keep your own sanity, this easy guitar setup guide will help you achieve great results in no time.

Easy Guitar Setup Guide

Introduction: How To Set Up A Guitar

What This Guide Is, and Isn’t

This guide is based on a collection of skills and insights gained from decades of professional technical experience. It covers the most common tasks, presented in a logical progression, that apply to the vast majority of guitars going through the setup process.

You will also benefit from learning fundamental concepts and time-saving techniques gained from years of experience that help you spend less time fiddling, and more time playing.

What it does not cover are topics related to intensive repairs, replacing electronics and personalized guitar modifications. Such tasks are, for the most part, not directly related to the setup procedure and are therefor beyond the scope of this text.

Finally, to say this guide covers everything there is to know about guitar setups would be a gross overstatement. I would also add that the methods described are not necessarily the last word on how to get a particular job done.

To say so would satisfy the ego, but deny the benefits of learning better techniques.

Should You Do Your Own Setups?

In a word – yes. But before you begin buying tools and tackling a job with new found wide-eyed zeal, let’s make a couple of things very clear:

If you are not mechanically inclined, it would be foolish to fight your nature. You may be comfortable changing your strings but find troubleshooting other guitar problems far too intimidating.

If you believe you fall into this category, please feel free to read on. The value of understanding the process will help you communicate better with someone you trust to do the work.

On the other hand, there are those of us who have no problem picking up new mechanical skills and are perfectly willing to learn how to set up our own instruments – we just need a guide to help us along the way.

Still, should you wind up in a situation over your head, it’s a far better decision to get an instrument into the hands of someone with experience.

That being said, let’s reinforce a positive attitude on the subject. With the right mindset and working environment (which can be incredibly modest) you can achieve remarkable results, and that is the true purpose of this guide.

Typical Guitar Problems

Guitars follow the same basic structure whether they’re acoustic, electric or electrified. They all involve the manipulation of stretched strings spanning two nodes – namely, the nut and the bridge.

Because of this similarity, they’re also prone to the same problems.

These problems also extend to orchestral instruments such as violins, violas, cellos, or culturally diverse instruments such as balalaikas, ouds, bouzoukis, banjos and mandolins.

From the point of view as a guitar player, here are a few common problems we all deal with at one time or another:

• Buzzing, rattling
• High action
• Tuning issues
• Breaking strings

And many more of course.

What’s the Difference Between a Guitar Repair and a Guitar Setup?

The difference between a repair task and a setup task is a matter of perception.

For example, the guitar contains so many mysteries for beginners that the replacement of a broken string constitutes a “repair”.

For seasoned players, a “guitar setup” is perceived as more of a technical endeavour related to maintenance.

Although there are some crossover elements which would qualify as repairs, there is a clear difference between heavy duty guitar repair:

… and guitar setups which qualify as general service. Another way to differentiate the two is by job description: a luthier is one who builds or restores instruments, and a technician is one who specializes in the performance of an instrument.

In this guide we focus on dealing with the normal wear and tear conditions that are part of every instrument’s journey through time. They are an absolute inevitability regardless of pedigree, and the primary focus of service tutorials on this website.

The Basic Rules of a Guitar Setup

“You should play so that if your mom hears you on the radio, she knows it’s you.”

– Les Paul

Granted, the reference to radio is dated, but the sentiment is the same: you should be able to express yourself freely through your guitar without the instrument’s condition holding you back.

Taking the ten thousand foot view, there are a few simple rules representing the fundament principles of an organized, educated approach to achieving your ultimate goal – setting up your guitar to its maximum potential.

These fundamental rules are:

1. Use Fresh Strings
2. Use the Right Guitar Setup Tools
3. Follow a Good Setup Process

Those three little phrases work as a team, they depend on one another, if you neglect any one of them I guarantee your final result will be sub par.

Rule number three, using your head, is by far the most important as it leverages knowledge, logic, procedure and technique.

Let’s have a closer look at why these principles are so important:

Use Fresh Strings

While this may seem mundane, I can’t stress how important it is to use fresh strings as the very first step to a perfect setup.

Simply put, if you try to do a setup with old strings you will fail.

Aged strings will give you all kinds of grief as they mask underlying problems and are virtually impossible to calibrate.

So the question is: “How old is new?”

It’s a fact that untreated new strings will start degrading virtually from the moment you put them on. As soon as you touch them, the amino acids of your body chemistry will start reacting with the metal in the strings.

The vast majority of us can make use of a new set of strings for what I would say is a reasonably long time.

But for some others, this chemical reaction happens very quickly turning a fresh set of strings into a rusty mess in a matter of minutes – I’ve seen it first hand. Thankfully, the invention of coated strings makes all the difference in the world in this situation.

Regardless of your physiological impact on strings, it’s easy to justify the expense of a new set in order to guarantee an accurate setup.

Use The Right Tools

There’s a hard cost to obtaining the tools you need to get the job done, but you don’t need to break the bank. Not to mention you probably have some of the more common ones, screwdrivers and such, already kicking around in your toolbox.

Using the right tool for the job will save you time, and potential grief from having damaged a critical guitar part.

Follow a Logical Process and Use Common Sense

Let’s put it in perspective:

You can read a book on sex, but it’s not the same as doing it.

Fair enough, but you have to start somewhere.

Having a guide to follow (such as this one) will help to organize tasks in a logical order. This makes the whole process easier and will ultimately save you time and frustration.

Still, as an individual who needs to test their own capabilities, you’ll need to figure out where your comfort level lies. The only way to do that is get in there and get your hands dirty.

You may make mistakes, I’ve made many – it’s all part of the learning process. But without doing, there is no knowing.

If you find yourself stuck, take a short break, think the problem through, and pierce the fog of indecision.

Understanding Guitar Action

Guitar action can be thought of as the three points of a triangle: the bridge, the nut, and relief. When all three points are in agreement, that is, when they are in harmony and properly working together, we can consider the result comparable to a perfect triangle.

Another way to think of it is like this: when all three elements are aligned to both the instrument and the player, you have a perfect, balanced setup.

If any one point is out of adjustment, it automatically affects the others, creating an imbalance. The result is compromised guitar action, and a frustrated unhappy guitar player.

“How Do You Fix the Action on a Guitar?”

In order to answer that question, let’s try to understand exactly how each point affects the others in a bit more detail:

Fundamental Points of Guitar Action:

The Nut

When the nut is cut properly it becomes essentially a fixed point and won’t need to be dealt with except for issues of wear or damage. In other words, set it and forget it – that’s good. But it’s sweet spot is wholly dependant on how the other two points are set.

The Bridge

Raising or lowering the bridge streamlines the overall action and is directly affected by neck relief. If the bridge is set too high, you’ll have too much “air” under the strings where the neck meets the body – a major contributor to “high action”.

Too low and the strings will buzz – not enough “air” or string height in the same area. Remember, adjusting one point directly influences the others. The aim to achieve balance!

Neck Relief

This is by far the most controlling element of the lot. Setting good relief is a matter of compensating for string compression and accommodating the player’s style – some players like their action higher or lower than factory-set averages.

How well the neck responds to truss rod adjustments is often dependant on how well the instrument is made. Generally speaking, better quality instruments will allow very fine adjustments in relief through their use of better truss rod materials and engineering.

Because strings need room to move, controlling the amount of relief in the neck is absolutely critical to achieving a perfect guitar setup. The nut and the bridge settings will ultimately be limited by how well the truss rod works, or doesn’t.

Relief is also influenced by the general condition of the neck – whether it’s straight and true or has compromising distortions. If these distortions are significant, they must be dealt with first to level the playing field.

If they’re minor, it’s not uncommon to wind up working around them to achieve a point of “least of all evils”.

Through practice, you will be able to tell immediately if a guitar will come around properly, or in the worst case, realize it’s best use is to look pretty hanging on the wall.

CLICK HERE TO GET YOUR FREE COPY OF THIS GUIDE!

Guitar Setup Tools and Products

What tools do you need to set up a guitar?

Here’s a shortlist of recommended guitar setup tools:

Examples of Setup Tools and Accessories

Dunlop NC65 Maintenance Station Neck Cradle

Grizzly T25450 Nut Files, Set of 3

StewMac Understring Radius Gauges, Set of...

MusicNomad MN103 Guitar ONE All-in-1 Cleaner...

Snark SN5X Clip-On Tuner for Guitar, Bass & Violin...

D'Addario Accessories Pro-Winder Guitar String...

Kyser Quick-Change Guitar Capo for 6-string...

D'Addario Acoustic Guitar Strings, Phosphor...

A much more detailed list of recommended guitar setup tools can be found here.

Overall, the list is pretty modest. By way of contrast, a custom guitar builder’s tools would include jigs for bending, presses, sanders, templates, finishing chemicals, highly specialized tools for a very specific craft.

And yet, even the finest hand made instruments need a setup! – cool.

How to do a Professional Guitar Setup

The guitar setup process can be broken down into nine distinct phases. Use the quick links below to jump to any section you’re interested in:

1. Assessment
2. Teardown
3. Cleaning the Guitar
4. Installing New Strings
5. Preliminary Adjustments
6. Action, Intonation and Fine Adjustments
   6.1 Adjust the Truss Rod
   6.2 Set the Bridge Height and Radius
   6.3 Recut the Nut
   6.4 Adjust the Pickup Height
   6.5 Check and Adjust the Intonation
7. Stretch the Strings
8. Check for Functionality

The setup process follows a logical progression from the assessment phase on through to the final checks with a brand new set of strings.

As you work through each step, you may find the order of some fine detail tasks may work better before, or after others in the sequence. This is absolutely normal and can be dictated by the nature of the instrument itself.

The important thing to remember is, there is a logical hierarchy to the tasks themselves – one naturally leads to the next. For example, once the action is set, then you set the pickup height.

To do so beforehand means you may have to set the pickup height again because the string height has changed.

The less time you spend readjusting your work, the more time you get to spend playing :)

For further insight into some of the finer details, be sure to check out the Authentic Guitar Setup Video Series for the full one-two punch.

A Word on Locking Systems

Because of the uniquely refined nature of locking systems and their departure from traditional guitar setup processes, references to such thoroughbred instruments are kept to a minimum, otherwise this guide would be double its size!

Nonetheless, when it comes to action, string height, cleaning, playability, and general principles of a good setup, they are no different.

Assessment

To know where you want to be, you must know where you are:

• Play the guitar and get a fresh feel for where the problems are. If it’s an instrument you’re intimately familiar with, this is a no-brainer, you’ll already know where the trouble is.
• If you’re going to service someone else’s guitar, make sure you ask the owner about any issues they’re concerned about, And take notes! –  especially about a preferred tuning as this has a huge impact on the end product. Better yet, get them to play their guitar a little bit while you watch. Their approach to playing and body language will speak volumes.
• Check the operation of any controls, output level, scratchiness, check for rattles, buzzes, squishiness in the action (yes, squishiness), stiffness in playability, and any other stuff that just doesn’t seem right.
• Again, and I can’t stress this enough, take notes of owner preferences and any other problems that need attention – the weakest ink is stronger than the best memory.

Typical problem areas or “hot spots”

• Loose tuner keys or bushings
• A worn, damaged or “creaking” nut
• Strings that are too high or too low
• Uneven, loose or worn frets causing buzzing
• Neck distortions of any kind
• A truss rod out of adjustment
• An improperly adjusted bridge
• Loose hardware or small parts such as strap buttons and output jacks
• Dirty electronics
• Most importantly: old strings

DOWNLOAD A FREE COPY OF THIS GUIDE HERE!

Here’s an example of how uneven frets look when sighting down the fretboard:

Teardown

The teardown is sort of like reverse engineering the guitar. Think of this part of the process like going backwards, that is to say, we have to deconstruct the instrument before we can reconstruct it.

• Remove any cover plates that you need to get under:
  • Truss rod cover
  • Suspended pickguard
  • Backplate
  • Remove the strings
    • Chop all the old strings off in a bunch with one neat snip of the side cutters. Consider it a challenge, see if you can do it in one shot.
    • Toss the old strings in the trash right away, they’re a liability around the guitar. Gather up the dead string scraps and get them into garbage away from your workspace.
  • Remove any loose hardware that might fall off. Tape it down, or use rubber bands to keep things in place.
  • Tighten (do not over-tighten, just snug up) the hardware:
    • Threaded headstock bushings (typically a 10mm wrench)
    • Tuner key buttons
    • Neck bolts
    • Strap buttons
    • Any other loose screws
    • Output jack nut
    • Electronic controls

• NOTE: With the guitar “denuded”, this is the perfect opportunity to address any minor fret issues. But since fret work is highly specialized and can become a repair process very quickly, we’ll leave the intense work for a more involved tutorial. With that in mind, we can still take care of small issues quickly and efficiently – namely high frets:
  • If you do have such minor fret issues, you would have made notes about where they are right? Of course you did! But just in case you forgot, use a small straight edge (or fret rocker) around the fretboard to check for said high spots.
  • Use a lightweight hammer, or even the butt end of a substantial screwdriver, to lightly tap the offending fret down. One or two taps should do, then re-check the high spot.
  • If the fret won’t settle in, it falls into the realm of a loose fret. At this point we’re getting beyond our intended scope as the remedy will require glueing the fret down. The dangers of ruining a finish are too great, thus we’ll leave it for the separate tutorial mentioned previously.

Video: How to Setup a Gibson Les Paul – The Teardown

Aged Classic Les Paul Burst Guitar Shirt

Can’t afford the real thing? Wear it on a great quality guitar shirt for a fraction of the price!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Eleven: It’s One Louder T-Shirt

This shirt goes to eleven…

Love the eleven, it’s one louder.

Order Your Eleven Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Vintage Aged T-Style Electric Guitar T-Shirt

This superbly comfortable shirt sporting a beautiful Vintage Aged early 50’s butterscotch electric guitar graphic will last year after year, wash after wash.

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Original 1959 Les Paul Guitar T-Shirt

If you love beautiful guitars you can appreciate the massive appeal of this gorgeous iconic instrument in print as an Original Vintage 1959 Gibson Les Paul Tee. If you can’t afford the real deal… wear it on a shirt!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Cleaning the Guitar

While most dirt is really just dust and pretty easy to deal with, nasty caked-on stuff can be taken care of with a bit of elbow grease and patience.

Note: There are some who think paper towels are abrasive, and yes, the cheap ones are. Instead, stick with a high quality branded product.

You won’t have to worry about scratching the finish, plus any potential contamination from dirt goes straight in the garbage.

I would also add that I do not recommend the use of steel wool. Though I love it’s convenience in producing good results quickly, and I’ve used it many times, I’ve never been comfortable trying to clean up after it.

Those leftover steel fibres get absolutely everywhere! All it takes is one little piece to destroy a pickup, or contaminate your cleaning cloth leaving hairline scratches in the finish.

Whatever the nature of the grime, feel free to use any of the recommended cleaning products and have at it.

Recommended Guitar Cleaning Products

MusicNomad Premium Pro-Strength Guitar Polish for...

MusicNomad F-ONE Fretboard Oil Cleaner...

MusicNomad MN100 Premium Guitar Cleaner for...

As you work your way around the instrument, keep in mind the fretboard will need special attention. In general, start at the top of the guitar and work your way through these major areas:

• Headstock
• Body area under the strings
• Pickups
• Hardware
• PRO TIP: use an old toothbrush to remove loose surface grime.

• Fretboard and frets

  • Use a few drops of light soapy water or recommended cleaner to lift surface gunk. Be sure to work quickly to keep fluids from soaking into an open pore fretboards.
  • Rub it around the whole board for a few seconds to loosen up surface grime then quickly wipe it off with a paper towel.
  • Repeat if necessary.
  • Polish the frets with extra super fine sandpaper, 2400 grit or finer, then dribble on a couple of drops of lemon oil.
  • Spread the oil around the fretboard for a few seconds then quickly and completely wipe up the excess. There, all shite and briney!
  • NOTE: When polishing the frets, consider masking off coated fretboards with low-tack tape to prevent finish hazing. They still need a clean and polish but you can skip the lemon oil step. Just wipe up any polishing residue with a damp paper towel when finished.

• Body & finish

  • As most finish grime tends to be finger junk, a good quality detailing product will clean the surface just fine – that is unless you like to eat fried chicken and play your guitar at the same time. Heavier deposits will need a little more elbow grease.
  • Apply a small amount of cleaner to a fresh piece of high quality paper towel, just enough to damp it, and start working the finish.

Video: How to Setup a Gibson Les Paul – Cleaning the Guitar

Check out the whole series plus many more video tutorials here.

Installing New Strings

Taking strings off is easy. Installing new strings is just as easy, provided you have a method. Keep in mind, there’s more than one “right” way to instal strings.

In this example, we’ll follow a string installation technique that “traps” the tag end of the string between a top wrap, and successive under-wraps.

When installing fresh strings, work through the strings in order – heaviest to lightest or vice versa. New strings tend to be packaged in order, use this to your advantage to stay organized.

• Start by threading each string one after the other into the bridge or tailpiece.

• Next, install each string into its corresponding tuning post accordingly:
  • Start with the post that’s closest to the nut then work towards the end of the headstock.
  • Run the free end of the string through the post and pull it just snug.
  • Using your other hand, measure off about an inch and a half, then run the string backwards through the post until your fingers butt up against the post.
  • While still holding the tag end, use your other hand to wrap the slack string once around the top of the post in the direction the string will normally travel.
  • Now give the tag end of the string a sharp right angle bend against the post. This results in a nice kink which helps the string from backing out as you start the winding process.
  • Wind the string up keeping the following wraps underneath the tag end.

• The trickiest part of this whole process is controlling the slack in the length of the string. Keep things under control by using your first finger as a downward tensioner, just behind the nut, and draw the remaining slack up with the rest of your fingers.
• Finally, wind each string up so that it’s just snug – not to pitch!, that’s for later.

• Once you have all the strings installed in their respective posts, then give the tags ends a “hair cut”. Grab them all in one hand, so you can toss them in the trash in one shot, and cut each one in turn with side cutters right at the top of the tuner post.

Video: How to Setup a Les Paul – Installing New Strings

Stevie Ray Vaughan Number One Strat T-shirt

If you’re a Stevie Ray Vaughan fan, or love his prized Number One Stratocaster, you gotta have this shirt! The perfect tribute to one of the greatest blues guitar players to ever grace the planet.

Makes an excellent gift for any Stevie Ray Vaughan fan or guitar player!

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

More Cowbell! Unisex T-shirt

From deep in the heart of Sunshine Studios, Gene Frenkele attempted to channel his best performance on the most important instrument in any band. Knowing the track was on the verge of coming off the rails, rock legend Bruce Dickinson came to the rescue with a single burning plea: “I GOT A FEVER!! and the only prescription… is MORE COWBELL!!”

Makes an excellent gift for any fan of Classic Rock!!

Order Yours Today!

---

not rated $23.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Cool Classic Style Guitar Player T-shirt

This unique custom design tee is not found in any other stores. Enjoy this cool retro styled guitar t-shirt for your very own – or share it with a friend!

Makes a great gift for any guitar player who appreciates the instrument.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Keep Calm And Solo On Short-Sleeve Unisex T-Shirt

NOT SOLD IN STORES!

Enjoy this incredibly comfortable Keep Calm And Solo On Uinsex T-shirt with a guitar player’s twist of support and hope. Rock On, Play On, Keep Calm. and always remember those on the front line!

Makes a perfect gift for any guitar lover!

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Preliminary Adjustments

This is where the true magic of a good guitar setup starts to become a reality. For easy reference I refer to small measurements using common items such as a dime, nickel or quarter. To remain inclusive, imperial and metric equivalents are provided for extra convenience.

• Snug up the strings

  • Bring the strings up close to tension but not to pitch. This helps to keep their elasticity as we get the ten thousand foot view.
  • Check that the action is in the ballpark. At this point some adjustment points may be way out of whack. What you’re looking for are these key points:
    • Check the general string height. The bass side should be off the frets about the width of two dimes around the twelfth to fifteenth fret area – the gap should measure about .1″ or 2.7mm. Likewise, the treble side should be about the width of a nickel – .077″ or 1.95mm.
    • Check the neck angle. The neck should be in line with the hardware at the bridge. By sighting down the neck from the headstock to the body, the neck angle (the plane of the fretboard) should be such that the top of the saddles are neither too high or too low.
      If the instrument has a bolt-on type neck, this is your opportunity to correct any misalignment issues. Remove the neck and instal a thin shim – sandpaper works great for this – until the neck angle looks correct to you.
      Set neck instruments are of course non-adjustable, but are usually engineered to have enough adjustability at the bridge to compensate for slight offsets.
    • Examine the nut. The nut slots should be even in depth. No individual string should be either too high or too low.
      If the strings are too high, the amount of deflection needed to play at the first couple of frets will be uncomfortable plus it will cause intonation issues. Conversely, if the slots are too low you’ll have string buzz at the nut. In either case the nut will need to be repaired.
    • Check the bridge height. The bridge should be adjusted such that it puts the overall string height in the range of reasonable playability at the twelfth to fifteenth fret area. We’ll fine tune it later.
    • Check general neck relief. Again, neck relief is one of those elements that dramatically affects playability.
      A neck with too much relief will feel spongy through the middle and mask underlying problems. A neck that’s over-straight will be sure to have buzzes and sizzles along it’s length.

If you’re interested in improving how well your guitar plays, you might be interested in improving how well YOU play! Get your chops tip-top with these excellent guitar courses:

• Begin making preliminary adjustments as necessary

Assuming the nut is in reasonably good condition, start with small bridge height and truss rod adjustments to begin homing in on the perfect triangle of action. If the nut is way out of tolerance, only address the major issues to bring it into an acceptable range.

• Check electrical operations

  • The output jack. One of the most common electrical issues is a simple loose nut at the output jack. Check it and tighten it up if necessary.
    If there’s visible surface corrosion in the input sleeve, remove it by rolling up some fine sandpaper, 360 grit or finer, into a tube and spinning it inside the input sleeve.
  • Volume and tone controls. If they’re scratchy, try spinning them back and forth really quick. If that doesn’t work, you’ll have to use an electronics cleaner or replace them.
  • Switches. An intermittent blade switch can be a fairly easy fix. A thin piece of doubled over 600 grit wet-dry sandpaper can be used to clean the contacts.
  • Battery condition. If a battery is questionable at all, just replace it and be sure to write the date on it for future reference.

Action, Intonation and Fine Adjustments

The following sections describe the finer points of adjusting the action on a guitar. Remember, the strings should be just snug enough to apply a little bit of pressure – not up to pitch and certainly not stretched out yet!

• Adjust the truss rod



  Which way do you turn the truss rod?

  • Think of the truss rod adjuster like a nut on the end of a bolt. Tightening the adjuster straightens the neck, loosening it induces more relief.
  • Start with a straight neck that agrees with the other two points of the action triangle – the nut and bridge height.
  • Use the 3rd string to get a general idea of where the relief sits for the whole neck. Holding down the string at the third and fifteenth frets, you want to see a gap of light about the thickness of the string itself between the fret top and string at the seventh to ninth fret area.
  • Adjust the truss rod as necessary until the neck feels right to you, maybe a little, maybe a little less.
  • Be patient as adjustments may need a day or two to fully settle in. Don’t be surprised if you have to readjust it later if the neck was really out of joint.

Video: More On How A Truss Rod Works

• Set the Bridge Height and Radius

  Whether your guitar is an acoustic, bass, or electric, the principles described here apply to all of them. The bridge should be slightly higher on the bass side to allow extra room for the heavier strings to move freely.

  • With acoustic instruments, the saddle should be trimmed from the bottom if too high, or have a shim installed underneath if too low. Keep in mind a little goes a long way. That is to say removing or adding a small amount can feel very different once the saddle is back in place
  • At this point in our setup process, it’s perfectly ok to remove the strings at the bridge since we haven’t stressed the strings through stretching yet.
    • Measure the current string height at the 12th fret and determine how much lower or higher you want the strings to be.
    • Loosen the strings completely.
    • Pull the bridge pins and take the strings out of their respective holes.
    • Remove the saddle and draw a pencil line along the side to mark your cutoff point if it sits too high. .020″-.025″ is a good starting point.
    • Sand or grind off the excess material making sure the bottom is absolutely flush – especially if you have a pickup system!
    • Conversely, cut a thin strip of shim material, suitable hardness and thickness, cardboard or plastic, and instal it in the saddle slot.
    • Reinstall the bridge, then the strings and snug them up.
    • Check your work and determine whether you should readjust or carry on.

• • On electric instruments with adjustable bridges, start with the treble side. The first string should be off the frets about the width of a nickel (.077 inches or 1.95 mm) around the fifteenth fret area.

• • The sixth string should follow the same methodology to set the height. Ideally it should measure about the height of two dimes (.1″ or 2.7mm) at the fifteenth fret.

• Set the tailpiece

String Thru vs Top Wrapping Stop Tailpieces

There is constant debate as to which method is better: factory-style string through? or top-wrap string installation.
Is there a difference in sustain? – Yes. The tighter the tailpiece is to the body, the more energy is transferred.
Is there a difference in play-ability? – Yes. The less angle there is across the bridge, the more elastic the strings feel. The other benefit is that the bridge will resist sagging over time due to the decrease in pressure.
Is there a difference in tone? – Absolutely! But it’s subjective.

There is a happy medium for stop tailpieces like those found on Les Pauls

As mentioned, the tailpiece does not necessarily need to be plastered to the body. There’s a sweet spot that produces just the right amount of pressure for virtually any taste. It’s a matter of adjusting the angle of the strings as they pass from the tailpiece over the bridge. The height of the studs should also be set to match the relative height of the bridge posts.
In the image below, you can just make out the knurls of the bridge height thumbwheels. Notice the tailpiece follows the same plane of the bridge from bass side to treble side:

Adjusting the string height of a floating bridge plate

Whether your trem system is fully locking or vintage style floating, there is a delicate balance between the height of the bridge plate and the corresponding height of the individual string saddles.

The optimal bridge plate setting is controlled by the tension of the tremolo springs found in the back of the instrument.

These springs are attached to a claw plate with two adjustment screws which increase or decrease the spring tension by moving the claw plate forwards or backwards within the cavity.

Depending on the type of floating system, the bridge plate should be set level with the plane of the body (modern systems and hardtail setups) or tipped 1/8″ off the body at the rear end of the plate for a vintage style setup.

• • Simply adjust the two claw plate screws in or out equally to achieve your ideal bridge plate setting.

• Set the string saddle radius

Watch How To Setup A Fender Telecaster Part 5 for an idea how to do this.

• • Acoustic saddles can be reshaped to conform to a more ideal radius. Keep in mind the bass side should have a tiny bit more lift.
  • Les Paul type saddle heights are more or less fixed, but, using the right tools, can be re-cut to accommodate an improved radius.
  • Fender style saddles were designed from the get-go to be fully adjustable. This is where your fine allen keys come in handy.
    In every case you want to achieve a graceful curve across the top of the saddles that matches the natural radius of the instrument you’re working with.
  • Some of the most common radius dimensions are:
    • 16″ – Martin
    • 12″ – Gibson and Epiphone
    • 10″ – Off-shore Fender and Squier including knock-offs
    • 9.5″ – Fender USA
    • 7.25″ – Vintage and Reissue Fender USA

• Fine tune the action

Use the principle of the Perfect Triangle Of Action. Throughout the preliminary and fine adjustment phases you should be checking the balance of these three elements regularly:

• • Nut height
  • Bridge height
  • Neck relief

Any one of the above points can shift during the process. Keep a constant eye on them!

• Re-cut the nut

  • Recutting the nut, if necessary, is a highly specialized job I can only cover the most critical elements.
  • Always judge string height with a straight neck.
  • Be mindful of string deflection. Wherever it changes angle, lightly push the string into place to help seat it.
  • Judge the gap of light at the first fret for each string.
    Looking side on at the nut, you want to see a gap of light about the same thickness of the sixth string between the bottom of the string and the top of the first fret.

• • Carefully cut each slot to depth using hobby blades and select needle files.
  • If a slot is already too low it will have to be repaired, or the entire nut may need to be replaced.

• Adjust the Pickup Height

  • Start with setting it 1/8″ or 3.18mm (about the thickness of a nickel and dime together) away from the strings.
  • If possible, carefully adjust the pole-pieces to match the fretboard radius.

• Preliminary string stretch

  • Hold the instrument in your lap either in a playing position or lying flat. Keeping your thumb extended to both control and force pressure into the string, give each string a good yank in sections along its entire length. Remember, batch your processes!
  • Stretch all the strings in turn
  • Bring the guitar up to pitch.
  • DO THIS ONLY ONCE! Otherwise the strings may become compromised if you need to back up a step or two in the process.
  • PS, want to know how much is too much for a given string? There’s only one way to find out, and that’s by literally trying to break them. I would suggest using a cheap set of strings and attempting this test on an instrument you don’t mind beating up.

GET YOUR FREE COPY OF THIS GUIDE TODAY!

• Check and Adjust the intonation

  How do you Intonate a guitar?

  Let’s start with the concept first: if a high note registers sharp, the scale has to be longer. The opposite condition will follow suit automatically.
  Luckily, there are predictable patterns saddles fall into depending on the type of instrument and type of strings. These visual cues come in very handy when you want to verify intonation is indeed in the ballpark:

• Acoustics for the most part have a non-adjustable fixed intonation (but they can be modified).
• Electrics, both basses and guitars, have had fine intonation capabilities for decades.

• • • Semi-acoustics still incorporate a somewhat old-school bridge system (sometimes referred to as a floating bridge because it’s not secured to the guitar)
  • The technique:
    • Using moderate finger pressure, start with the fifth fret on the fifth string, a D note, and take note of what the tuner registers. Go up an octave on the same string to the seventeenth fret, a D again, and see what the tuner tells you.
      If the octave note is sharp, lengthen the scale. If it’s flat simply adjust in the other direction.
    • Repeat the process for the other strings.
    • For a a more comprehensive guide on the subject, check out my article: “The Ultimate Guide to Guitar Intonation” at GuitarChalk.com.

Video: How to Setup a Fender Telecaster – Action and Intonation

Aged Classic Les Paul Burst Guitar Shirt

Can’t afford the real thing? Wear it on a great quality guitar shirt for a fraction of the price!

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Vintage Aged T-Style Electric Guitar T-Shirt

This superbly comfortable shirt sporting a beautiful Vintage Aged early 50’s butterscotch electric guitar graphic will last year after year, wash after wash.

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Vintage Aged S-Style Electric Guitar T-Shirt

Order Yours Today!

---

Rated 5 out of 5

$25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Acoustic Guitar Fingerprint T-shirt

You have your own unique identity imprinted right in your fingertips. It’s as distinct as the music you like, and the music you play.

This custom designed acoustic guitar t-shirt print makes a cool gift for any acoustic guitar aficionado.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

• Check for issues

Time to make those fine tuning adjustments and tweak out things like:

• • Fret “hot spots”. Sizzling frets are usually due to the bridge being too low, the neck being too straight, or a combination of both.
  • Neck relief – sponginess or over-straightness. Readjust as necessary.
  • Sympathetic buzzes. Rattles from vibration and loose parts can make themselves annoyingly evident.
  • General operation. The guitar should really be coming together and start to feel like a superior instrument.

Stretch The Strings

Stretching the strings is a key subject because of how important it is to the guitar’s tuning stability.

Speaking of tuning, installing a new set of strings always involves repeated adjustments until the strings settle in. A great way to minimize this type of redundant process is to develop a better sense of pitch – it’ll save you a ton of time!

To help improve this essential skill, you can find an excellent guide on ear training at StringKick here.

With our preliminary string stretch out of the way, we can now get down to the business of getting them fully settled in enough to rely on.

• Perform a secondary string stretch using the same method described previously, give the strings a good going over but be a bit more vigorous.
• “Pinch” the strings to set them in place wherever they pass from one angle to the next. This slack will eventually straighten out causing your strings to fall out of pitch.

• Tune the instrument up to pitch.
• Repeat the stretching process one more time.

The strings should now be pretty much at their tensile limit for their respective pitches.

Check for Functionality

Congratulations on reaching the finish line. Just a few more steps and you’re in guitar nirvana!

• Check mechanical stability

  • Check the tuners for smooth operation.
  • Listen for “tinks” at the nut or bridge. This indicates a point which will need smoothing out or a small tweak to set it right.
    For instance, there may be a hard “v” at the bottom of a nut slot, or a side wall may have a sharp edge. It’s a pretty easy fix with the right size nut slot tool or a small dab of lube.

• Check tuning stability

  • Play a bit to heat up the strings.
    This is a great test to see how stable the instrument is going to be in the real world. Body heat transferred through your hands can be surprisingly problematic.
  • Get aggressive with string bends and chord changes across all strings to make sure their pitches stay true.

• Double check electronics

  • Plug the guitar in, make sure that all controls are doing what they’re supposed to do.

• Check the guitar’s action – sponginess or “feel”

  • Intuition plays a huge part in how you feel about the final product – either it’s right or it’s not. The trick is knowing exactly what the problem is that’s keeping the guitar from being “happy”.

• Tweak again if necessary

  • It’s not uncommon for gremlins to show up at the last minute. Hunt them down and kill them.
    Your goal? A super fine playing guitar that’s a joy to play.

• Reattach any remaining hardware

  • Parts such as floating pickguards and backplates can now be reattached if you’re confident you’ve accomplished all the fine adjustments.

• Finish up with a final polish and detail

  • Wipe the instrument down with a recommended guitar polish or premium finish detailer without abrasives. I’m still a big fan of paper towels – bye bye dirt – forever.
  • PRO TIP: Wrap the tip of a bamboo skewer or similar sized wooden dowel in the paper towel to get into those tight spots and ninety degree angles.

… aaaaand we`re done :)

Time To Play Your Newly Setup Guitar!

In closing…

What can I say?… Only that once you get the hang of it, you’ll find most guitars will need less attention over time because much of the heavy lifting has been done. It may take a few sessions. but you will have the satisfaction of knowing how to maintain your own guitars properly.

Get to it! And enjoy playing your awesomely setup guitar!

Want to continue to improve your skills?

Come back and check out the site regularly, we’re always adding new articles and how-to’s.

The purpose of Guitar Niche is to help people exactly like you. Those who share a passion for guitars and want to know how to keep them working perfectly.

Without you, the whole endeavour is pointless.

Whether you just want to maintain your gear, or be the best guitar tech in your area, or the world! Guitar Niche will be here to help you along the way.

Thanks For Reading!

DOWNLOAD A FREE PDF OF THIS GUIDE HERE!

The post How To Setup A Guitar [Complete Step by Step Guide] first appeared on GuitarNiche.

We certainly hope you benefit from the information we provide in this article! Just so you know, we may receive compensation if you use the links on this page. If you do, thank you so much!

Does Fender’s Squier Classic Vibe 50’s Telecaster Deliver the Goods?

(4.3)

The Squier by Fender Classic Vibe 50’s Telecaster Guitar is synonymous with classic guitar designs in the United States. In fact, when many people picture classic rock guitars, they’re imagining the iconic Telecaster.

If you’re looking to travel back in time with your musical talent, this is one of your best options.

As a guitar manufacturer, Fender is one of the most prominent companies on the planet. While this model isn’t the cheapest on the market, it’s undoubtedly one of the most famous in design.

It’s also much less expensive than some other high-end alternatives and custom shop models.

With plenty of features and performance benefits included, it’s hard to say no to this guitar if it’s within your budget. In this review, we’ll take an in-depth look at the Fender Squier Classic Vibe 50’s Telecaster to find out whether it’s a yes for you in particular.

Classic 50’s Design

If you appreciate classically designed guitars with historical significance, you can’t go wrong with the Fender Squier Classic Vibe 50’s Telecaster. This design is known around the world for its famous appearance and retro-look.

Many of the world’s most famous guitarists played telecasters – including Bob Dylan, Jimmy Page, and Keith Richards. This economical and very practical guitar design comes with plenty of history attached to it.

A Wide Range of Included Features

While the modern Squier Classic Vibe 50’s Telecaster isn’t exactly the same as the classic design from decades past in small details. It has plenty of traditional features including a master volume and master tone controls, as well as two custom single-coil Tele pickups.

• Maple neck, “C” profile
• Pine body; gloss polyurethane finish
• Maple fingerboard, 9.5″ radius with dot inlays
• 25.5″ scale length, 21 Narrow Tall frets
• 3-way pickup selector; master Volume and Tone controls
• 3-saddle string-through-body bridge
• 1.65″ wide nut (now bone)
• Vintage-style tuners

In short, this guitar is built to perform every bit as well as its predecessor.

Check Classic Vibe Tele Availability Here! >>

Two-Year Warranty – One of the Best in the Industry

Protecting your guitar from malfunctions or design defects is an essential part of being a musician, plus it’s peace of mind. If you’re going to spend hundreds of dollars on a guitar, you need to ensure it’s as protected as possible against defects. Otherwise, you might find yourself replacing your guitar out of pocket.

New instruments can be particularly prone to changes in climate, often having to “weather” seasonal changes until they become stable. If a guitar is going to have problems, it’s within the first year and change that they’ll pop up.

With Fender, you’ll find a two-year limited warranty that covers manufacturing issues related to your guitar. Considering the nature of wood and it’s unpredictable stability as such, this is a very good thing.

This warranty is better than the industry standard – many major guitar companies only provide a one-year warranty. If you want a company that backs its own products, Fender is a good option.

Variations to Choose From

Find great deals on your favorite gear at Sweetwater.com >>

How Does the Squier Classic Vibe 50’s Telecaster Sound?

The sound quality of the Classic Vibe 50’s Telecaster Electric Guitar is unmistakably high-quality. With a full and powerful sound output, this guitar is capable of performing at home or at gigs.

One of the first places a manufacturer will cut costs is in the electronics. Not so in this case, we’ve found the pickups to sound remarkably close to the original design from decades ago producing a tone that is exceptionally on par with classic Tele tone.

If anything, the support controls – the pots and output jack specifically would be a worthy upgrade.

You may also decide to replace the thick pickguard with a thinner, period-correct piece as well. While having nothing to do with the sound quality, it certainly represents better. Plus if it looks that much better, you feel better about it too.

While the amplifier you purchase will impact the quality of sound, you can count on this guitar to provide high-quality tone and reliability as is.

What’s the Classic Vibe Telecaster Build Quality Like?

There’s no doubt that the Fender Musical Instruments Corporation – FMIC – has one of the best reputations on the market. In fact, Fender might be the most famous electric guitar manufacturer on earth. Their status is aided by their steadfast commitment to creating great guitar products that last.

The Squier guitar is thoughtfully made using a selected resonant pine body (like the original Esquire), 1-piece comfortable “C” shape maple neck, a traditional bridge with brass barrel saddles, and a signature single coil pickup configuration that’s simple to use and service.

There’s a reason this design continues to remain popular over 60 years after its inception – it lasts.

Playability is great. Strung with 9-42 gauge strings out of the box, it’s easy to play and work through the control settings. Only two small complaints here:

1. The pots feel a little tight in their rotation which could slow you down should you want to make lightning fast changes, and
2. The finish on the fretboard in combination with the medium frets reduces the perceived fret height a touch.

Though the fretwork itself is impeccable and nicely finished, you might find you have apply a little more effort to get those big bends.

Squier Classic 50’s Tele UPDATE:

In January of 2020, we had a most recent Squier Classic Vibe Telecaster production model come in for a setup. We were pleasantly surprised to find that the frets were taller – .043″ in height vs the previous .034″. This allowed for a much more playable guitar when bending notes, plus the notes themselves range a bit more true.

The other surprise was the use of a more traditional bone nut rather than the synthetic material – nice! Overall, these two improvements really help to push the guitar further into the realm of superior value for money.

Squier Classic Vibe 50’s Telecaster in Review: Key Points

What Do Squier Classic Vibe Telecaster Players Think? >>

Find great deals on Squier guitars at Sweetwater.com! >>

Our Verdict: Is the Squier Classic Vibe Telecaster a Good Deal or Not?

Should you say “yes” to the Classic Vibe 50’s Telecaster?

Whether you’re a new guitarist or a seasoned veteran, you’re sure to find great value in the Squier Classic Vibe 50’s Telecaster Guitar.

Out of the box, this guitar has all the functionality you’ll need to perform in front of a large crowd or jam out at home while likewise boasting a solid warranty to back it up.

With a few modest upgrades, particularly in the supportive electronics, you can have a guitar that competes with instruments worth hundreds of dollars more. Now that’s getting your money’s worth!

If you’re really looking to go upmarket, there are better options available, but purchasing a Squier gives you a great guitar with a significant history and a killer traditional look to boot.

Check Today's Squier Classic 50's Telecaster Price! >>

Top Recommended Accessories

Fender Vintage Tweed Guitar Strap, Stocking...

Fender 990820005 Performance Series Instrument...

Fender Amplifiers 2330200000 Champion 20 - 20-Watt...

The post Squier Classic Vibe 50’s Telecaster Review (Fender’s Best Value?) first appeared on GuitarNiche.

Martin or Taylor: Who Makes the Better Guitar?

If you’re doing your own research on purchasing an acoustic guitar, it’ll be no surprise to come across two of the biggest and most iconic brands: Martin and Taylor, two of the most iconic brands in acoustic guitars known worldwide.

Both popular companies have been producing various guitar models well loved by many musicians for some time. In this article, we’ll explore more about the two competitors and make some critical comparisons.

We certainly hope you benefit from the information we provide in this article! Just so you know, we may receive compensation if you use the links on this page. If you do, thank you so much!

Popular Acoustic Guitar Models from Martin and Taylor:

Martin Guitars | C. F. Martin & Co.

C.F. Martin was founded in 1833 and is one of the oldest guitar brands in the world. It was first started by Christian Frederick Martin (hence C.F. Martin) and remains a family-owned and operated business until today.

Based in Nazareth Pennsylvania, the long-running manufacturing facility also offers free tours during weekdays so that the public can see how their guitars are made.

The brand is well known for inventing the “dreadnought” design of acoustic guitars. Since then, the dreadnought shape of the guitar has been a staple in acoustic guitar construction.

In their beginning years, they were just a small company that produced a small number of instruments.

They focused on producing quality guitars rather than producing them in great numbers. History is littered with many brand names that did not maintain an eye towards quality.

As time passed, that vision allowed the company grew into what it is today.

Taylor Guitars

In contrast to Martin Guitar’s early inception in 1833, Taylor Guitars is a more modern guitar company started in 1974 by Robert Taylor. Based in El Cajon California, they’re known for producing more professional lines for more experienced or highly discriminating guitar players, as well as excellent budget guitars for beginners.

They are also not afraid to stretch the limits of conformity and offer new designs that some manufacturers may find too daring.

Taylor Guitars, like Martin Guitar, produces high-quality instruments to make sure that they maintain their great reputation, and to ensure that guitar players are always satisfied with the product they offer.

They are the pioneers when it comes to the new technology “NT” bolt-on neck design and, again similar to Martin, patented the Grand Auditorium body design.

Aside from their fine acoustic guitars, they also produce electric guitars. Each of the guitars from their brand have the “Taylor tone,” which is described as a rich and bright sound.

Sound Comparison: How are They Different?

Martin and Taylor produce an extraordinary number of guitars. Each guitar may have different body shapes and materials used, which is why each one can produce a different tone even though it may have been manufactured from wood derived from the exact same tree.

Click Here to Check Martin Acoustic Availability >>

This compares their sounds in general, and not in detail. Many musicians describe the sound produced by Martin as the classic acoustic guitar sound – a rich overall sound with a particular bloom in the lower frequencies.

The more recent Martin DRS2 is a great example of their best value in a current instrument.

Popular C.F. Martin Products:

MARTIN Headstock Tie – Brown | Leather Strap...

Martin Guitar Original Acoustic M...

Martin Guitars: A History | Guitar Reference Book...

This “classic’ sound may also be due to the fact that they’ve been around for a much longer time and a lot of famous musicians record and release their albums using one of Martin’s guitar models.

The most notable artists who have used Martin guitars include Hank Williams, The Eagles, Paul McCartney, Johnny Cash, Elvis, Neil Young, and many, many others.

Click Here to Check Taylor Availability >>

On the other hand, the tone that Taylor guitars produces, such as the Taylor 114CE, are described as a more modern sound. These are usually brighter, cleaner and crisp. They produce a rich sound for the upper mid tones,

in contrast to Martin’s richer lower mids. Taylor guitars have been used by many contemporary guitar players such as Mateus Asato, Taylor Swift, Chelsea Wolfe, and many more leading edge musicians.

Popular Products for Taylor Guitars:

Taylor Guitars Honey Suede Logo Guitar Strap

Elixir Strings, Acoustic Guitar Strings, Phosphor...

Donner Guitar Capo for Electric and Acoustic...

Both companies also produce guitars that can be plugged into an amp. They incorporate and continue to develop quality electronics to make sure the sound produced is as close to true reproduction as possible with sound shaping flexibility, not just amplified.

Taylor guitars incorporate their excellent in-house designed Expression System pickup system while Martin primarily utilizes comparable OEM Fishman pickups.

Action Comparison: How Do They Play?

Taylor guitars and Martin guitars are both brilliant playing instruments when properly setup. With a little bit of common sense skill and a few modest tools, they can easily be dialed-in to a owner’s preference.

The exact adjustments will depend on the player, and can be done by the player themselves, or by seeking the help of a well-trained professional at your local music store.

The radius of the fretboard may also affect how easy it is to play the guitar. Different guitars from both brands may have different radii but most of the guitars that Martin produces have a 16” radius while Taylor guitars have a 15” radius as a standard.

Though a minimal difference between the two, a smaller radius is easier to do barre chords on.

When properly setup and cared for, both guitars are exceptionally easy to play due to their attention to the details. They’re both constructed using the best materials and engineered with the player in mind, all at a standard that is very hard to beat.

Compare owner reviews at Sweetwater.com >>

Build Comparison: How Do They Differ Structurally?

The two companies build their guitars quite differently. Taylor, perhaps more open to forward thinking construction, has come to love the various modern techniques available today. On the other hand, Martin guitars are more traditionally made because, after more than 170 years of experience, it works well for them.

One very forward thinking advantage with Taylor guitars is that the neck angle of the guitar is made to be more easily adjustable to compensate for natural changes over time.

A traditional neck reset with refinishing touchups can run into many hundreds of dollars, and every acoustic instrument will require this adjustment every couple of decades or so due to the forces of time and pressure.

Having said that, the neck of a Martin guitar isn’t adjustable in angle being built using traditional standards, but it produces a more resonant depth of tone compared to Taylor guitars. Thus is the nature and tradeoff of traditional set neck construction.

Taylor guitars are designed and crafted on a larger scale, but they still make sure that each guitar is of great quality. The NT necks fit in a precise pocket and use laser cut shims measured in thousandths of an inch to make sure the fretboards are well supported and straight.

On the other hand, Martin guitars are one of a kind, and each is crafted by hand. Each part of the guitar is designated by a group of people who specialize in making that certain part, and then they put all the parts together to form the guitar.

Recommended Online Guitar Lessons for Adults >>

Taylor vs Martin Value Comparison:

Martin is more traditional and offers a very classic sound to their guitars, while Taylor is more modernized and produces tones that you usually hear with contemporary music, but there are also modern artists who use Martin guitars.

One really isn’t better than the other because both produce high quality guitars. They just differ in the sound they produce and different guitar players prefer one over the other.

Popular Acoustic Guitar Models from Martin and Taylor:

Looking for a fully developed, robust bottom end and resonant authority? Choose a full-bodied Martin. Want a stronger midrange with top end transparency that can’t be beat? Choose a Taylor instrument. Either way, you’ll find your own unique voice through either of these superior brands.

Final words on Martin and Taylor guitars

Both the Martin and Taylor brands offer high-quality guitars. The debate between which produces the best guitars has been going on for a very long time; each of the brands have their own followers and devotees.

It all comes down to the player’s personal preferences. For a comparison of other exceptionally well-voiced acoustic guitars at reasonable prices, check out our comprehensive article here.

It has been said that, understanding they are both extremely fine instruments as acoustic voices, they are quite complimentary.

Acoustic Guitar Lover? Enjoy These Custom Tees!

Acoustic Guitar Art Print T-Shirt

Are you an acoustic guitar fan? Enjoy this one-of-a-kind print all day, every day. Wear this awesome acoustic guitar t-shirt with pride. This unique guitar tee design was developed by musicians, for musicians.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Acoustic Guitar Player Unisex T-shirt

This awesome Acoustic Guitar Player Unisex T-shirt is a perfect fit for any acoustic guitar aficionado. It’s soft, comfortable and made of the highest quality fabric to last year after year, wash after wash.

Also makes a perfect gift for any guitar player.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

Acoustic Guitar Fingerprint T-shirt

You have your own unique identity imprinted right in your fingertips. It’s as distinct as the music you like, and the music you play.

This custom designed acoustic guitar t-shirt print makes a cool gift for any acoustic guitar aficionado.

Order Yours Today!

---

not rated $25.97 USD Select options This product has multiple variants. The options may be chosen on the product page

The post Martin vs Taylor [Which Guitar is Right for You?] first appeared on GuitarNiche.
